Product Introduction

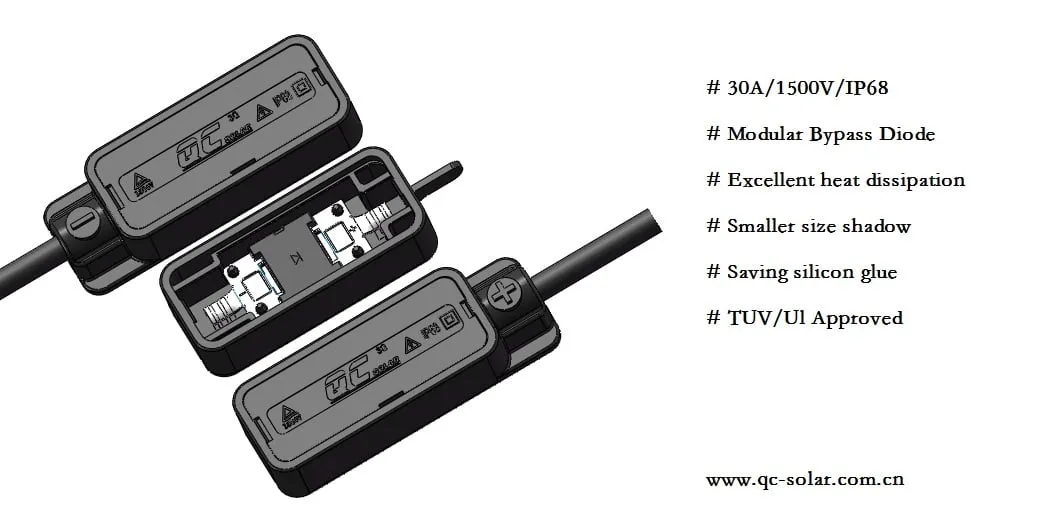

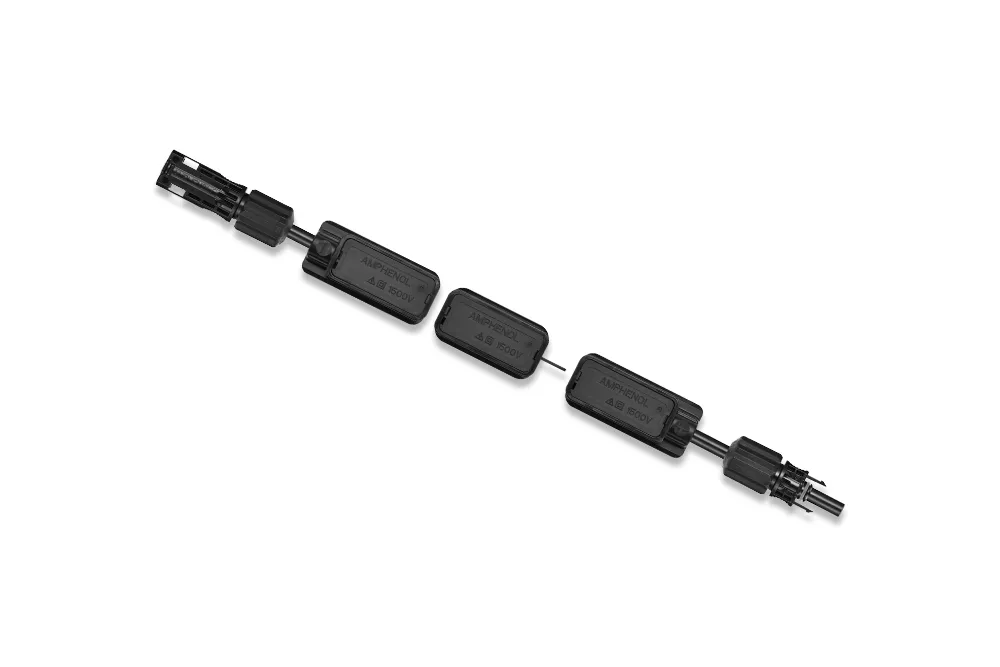

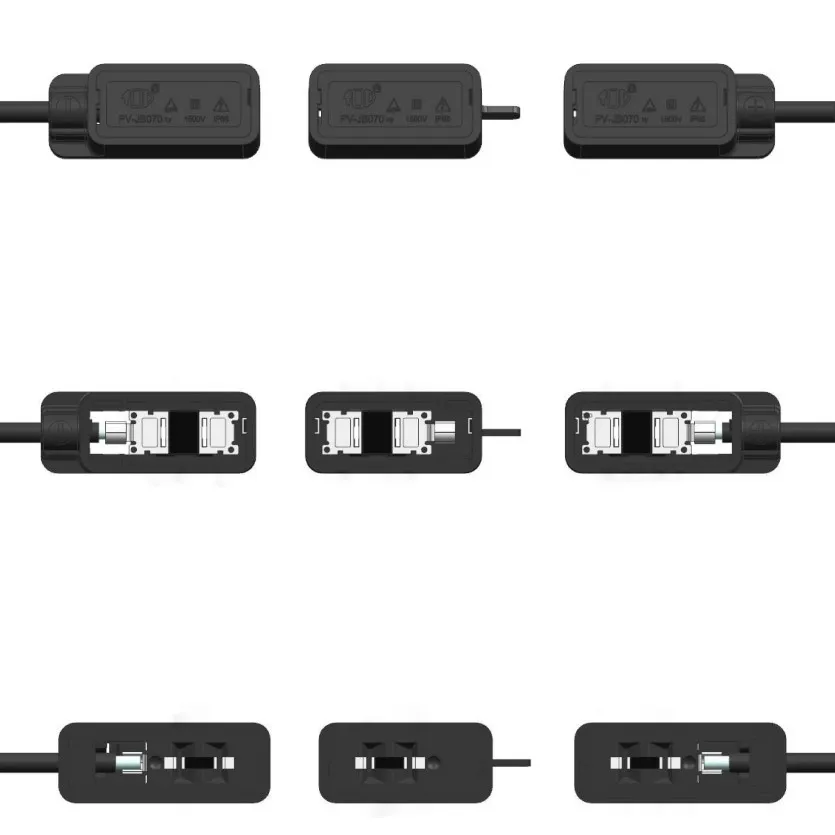

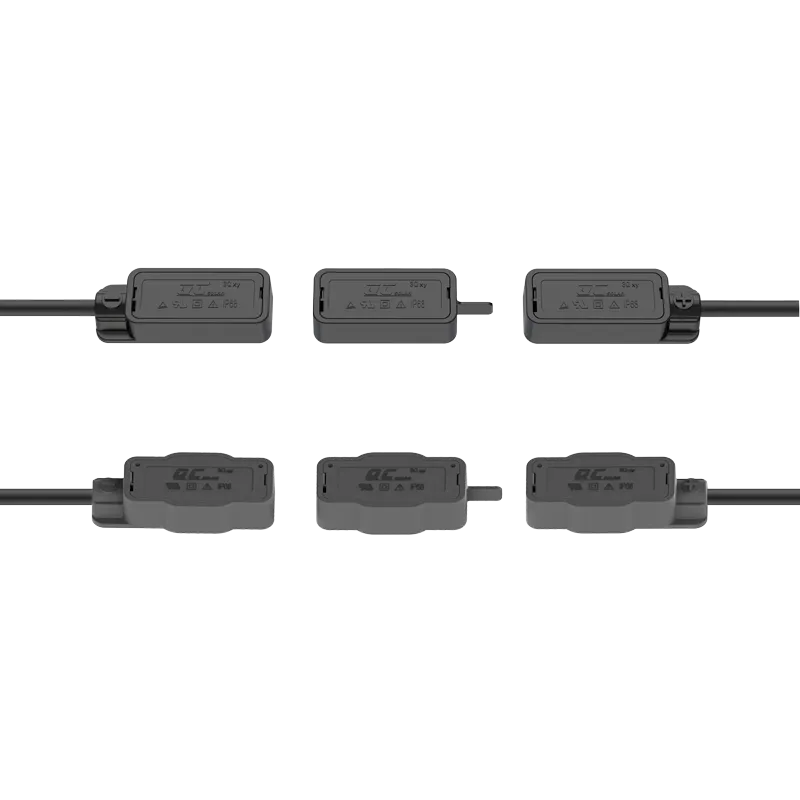

The photovoltaic junction box (J-Box) represents a critical component in modern solar module design, serving as the sophisticated electrical nerve center that bridges internal solar cell circuits with external PV systems. This advanced weatherproof enclosure, strategically positioned on the module's back surface, consolidates and safely outputs DC electricity while housing essential protective electronics. Our junction boxes integrate cutting-edge bypass diode technology to prevent devastating hot spot damage, ensuring module longevity and optimal performance in real-world conditions.
As a sealed electrical interface, the junction box performs multiple vital functions simultaneously - from power consolidation and output management to critical safety protection against environmental hazards. The system provides comprehensive protection against moisture ingress, UV degradation, and extreme temperature fluctuations, guaranteeing reliable operation throughout the module's 25+ year lifespan.
Technical Specifications
| Parameter | Specification |
|---|
| Housing Material | High-performance PPO engineering plastic |
| Flame Retardancy | UL 94-V0 rated |
| IP Protection Rating | IP67/IP68 (continuous water immersion) |
| Bypass Diodes | 3+ Schottky diodes per module |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1500V DC |
| Cable Type | PV-specific cables with UV resistance |
| Connector Type | MC4 or compatible waterproof connectors |
| Terminal Material | Tin-plated copper alloy |
| Diode Forward Voltage | ≤0.7V at rated current |
| Current Rating | 10A-30A (model dependent) |
| Service Life | 25+ years |
| Certifications | TUV, UL, IEC 61215, IEC 61730 |
Technical Advantages
Hot Spot Prevention Technology
Integrated bypass diodes automatically detect and redirect current flow around shaded or damaged cells
Prevents localized overheating that can cause backsheet damage or fire hazards
Maintains power generation in unshaded module sections during partial shading conditions
Superior Environmental Protection
IP68-rated sealing provides complete dust protection and continuous water immersion resistance
UV-stabilized materials ensure long-term durability under intense solar radiation
Wide operating temperature range accommodates extreme climate conditions
Advanced Safety Features
Double-insulated housing prevents electric shock hazards
Flame-retardant materials meet stringent UL 94-V0 standards
Secure locking mechanisms prevent accidental disconnection
Smart Integration Capabilities
Compatible with module-level power electronics (MLPE)
Supports rapid shutdown functionality for enhanced safety compliance
Optional integration with monitoring chips for real-time performance tracking
Optimized Power Management
Low forward voltage drop minimizes power losses
High-quality terminals ensure minimal contact resistance
Efficient heat dissipation design maintains optimal diode performance
Product Applications
Utility-Scale Solar Farms
Essential for large-scale photovoltaic installations where reliability and minimal maintenance are paramount. The robust IP68 protection ensures consistent performance in harsh outdoor environments, while bypass diode technology maximizes energy yield across thousands of modules.
Commercial Rooftop Systems
Ideal for commercial and industrial rooftop installations where partial shading from HVAC equipment, architectural features, or neighboring buildings is common. The hot spot protection ensures safe operation and maintains system efficiency despite shading challenges.
Residential Solar Installations
Perfect for residential systems where safety and longevity are primary concerns. The comprehensive protection features safeguard homeowners' investments while smart junction box options enable detailed monitoring of individual module performance.
Building-Integrated Photovoltaics (BIPV)
Critical for architectural solar applications where modules face complex shading patterns from building elements. The bypass diode system ensures aesthetic solar installations maintain functionality despite irregular shading conditions.
Off-Grid and Remote Applications
Vital for remote solar installations where maintenance access is limited. The 25+ year service life and robust environmental protection ensure reliable operation in isolated locations with extreme weather conditions.
