Product Introduction
A photovoltaic (PV) backsheet is the sophisticated multi-layer film that forms the outermost protective layer on the rear side of solar modules. This critical component acts as the module's "armor," appearing in white, black, or transparent variants to meet different application requirements. As a key barrier system, the backsheet safeguards internal components from environmental ingress while ensuring electrical safety throughout the module's 25+ year operational lifespan.

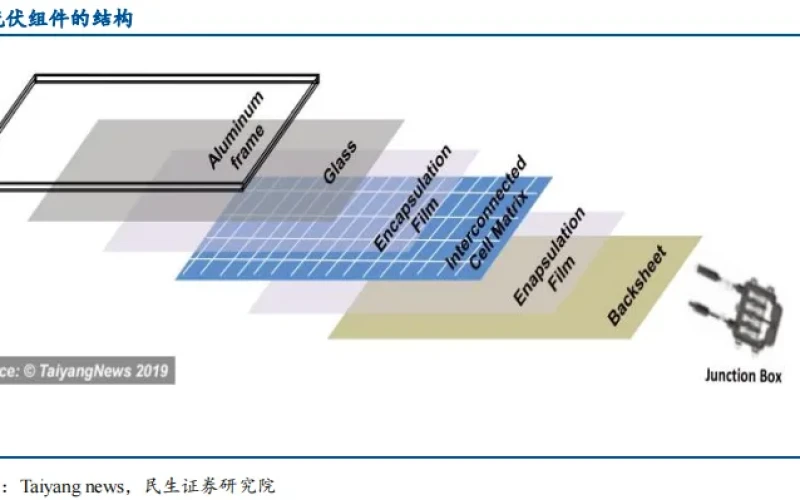

During the lamination process, the backsheet is permanently bonded with EVA/POE encapsulants, solar cells, and glass to create an integrated weatherproof unit. This sophisticated composite material represents decades of polymer engineering advancement, combining multiple specialized layers to deliver comprehensive protection and performance optimization for modern solar energy systems.
Technical Specifications
Standard Backsheet Properties
| Parameter | TPT Backsheet | KPK Backsheet | Coated Backsheet | Transparent Backsheet |
|---|
| Structure | PVF/PET/PVF | PVDF/PET/PVDF | Coating/PET/Coating | Transparent Polymer |
| Thickness | 300-350 μm | 300-350 μm | 250-300 μm | 300-400 μm |
| Dielectric Strength | >1000V DC | >1000V DC | >1000V DC | >1000V DC |
| Water Vapor Transmission Rate | <2 g/m²/day | <2 g/m²/day | <3 g/m²/day | <2 g/m²/day |
| UV Resistance | >3000 hours | >3000 hours | >2500 hours | >3000 hours |
| Tensile Strength | >150 MPa | >150 MPa | >140 MPa | >130 MPa |
| Operating Temperature | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
| Reflectivity (White) | >70% | >70% | >65% | N/A |
| Light Transmission | N/A | N/A | N/A | >90% |
| Service Life | >25 years | >25 years | >25 years | >25 years |
Layer Configuration
| Layer Position | Material Options | Thickness Range | Primary Function |
|---|
| Outer Layer | PVF, PVDF, Coating | 25-50 μm | Weather resistance, UV protection |
| Core Layer | PET | 250-275 μm | Mechanical strength, electrical insulation |
| Inner Layer | PVF, PVDF, Modified PET | 25-50 μm | EVA/POE adhesion, lamination compatibility |
Technical Advantages
Superior Electrical Protection
High Voltage Insulation: Provides robust electrical insulation for systems operating up to 1500V DC
Personnel Safety: Prevents current leakage to module frames and mounting systems
System Reliability: Maintains dielectric strength throughout 25+ year lifespan
Partial Discharge Resistance: Engineered to prevent electrical breakdown under high voltage stress
Environmental Barrier Performance
Ultra-Low WVTR: Water vapor transmission rates below 2 g/m²/day prevent internal corrosion
Chemical Resistance: Resists degradation from ammonia, salt mist, and industrial pollutants
UV Stability: Withstands 3000+ hours of accelerated UV testing without degradation
Temperature Cycling: Maintains integrity through -40°C to +85°C temperature extremes
Mechanical Durability
Impact Resistance: Protects against hail, debris, and handling damage
Scratch Resistance: Hard-coated surfaces resist abrasion during installation
Dimensional Stability: Minimal shrinkage or expansion under thermal stress
Tear Strength: High tear resistance prevents propagation of mechanical damage
Thermal Management Benefits
Temperature Reduction: White backsheets reflect >70% of incident light, lowering module temperature by 2-3°C
Power Output Enhancement: Cooler operating temperatures improve module efficiency by 1-2%
Bifacial Compatibility: Transparent variants enable rear-side power generation
Hot Spot Prevention: Uniform thermal properties prevent localized overheating
Material Innovation
Fluoropolymer Technology: TPT and KPK variants offer proven 30+ year field performance
Eco-Friendly Options: Fluorine-free coated backsheets reduce environmental impact
Advanced Adhesion: Optimized inner layers ensure permanent EVA/POE bonding
Color Customization: Available in white, black, and transparent for different applications
Product Applications
Utility-Scale Solar Farms
Large-scale solar installations require backsheets with exceptional long-term reliability and weather resistance. TPT and KPK fluoropolymer backsheets are preferred for their proven 30+ year field performance, ensuring minimal degradation in harsh outdoor environments. These installations benefit from white backsheets' thermal management properties, improving overall energy yield across thousands of modules.
Residential Rooftop Systems
Residential applications demand both performance and aesthetics. Black backsheets are increasingly popular for all-black module designs that blend seamlessly with modern architecture. These systems require backsheets with superior electrical insulation for safety, as modules are installed in close proximity to living spaces. Coated backsheets offer an cost-effective solution while maintaining the necessary 25-year warranty requirements.
Bifacial Solar Installations
Transparent backsheets enable revolutionary bifacial module technology, allowing power generation from both sides of the solar cell. These specialized backsheets are essential for ground-mounted systems with high albedo surfaces, floating solar farms, and vertical installation configurations. The transparent material allows 90%+ light transmission while maintaining all protective functions, increasing total energy yield by 10-30% depending on installation conditions.
Building-Integrated Photovoltaics (BIPV)
BIPV applications integrate solar modules directly into building materials such as facades, canopies, and skylights. These installations require backsheets with exceptional aesthetic quality, custom colors, and architectural compatibility. Transparent backsheets enable see-through solar windows, while colored variants match specific building design requirements.
Extreme Environment Deployments
Desert installations, coastal regions, and high-altitude locations present unique challenges requiring specialized backsheet solutions. Desert environments demand superior UV resistance and sand abrasion protection. Coastal installations require enhanced salt mist corrosion resistance. High-altitude deployments need backsheets capable of withstanding intense UV radiation and extreme temperature cycling.
