Product Introduction

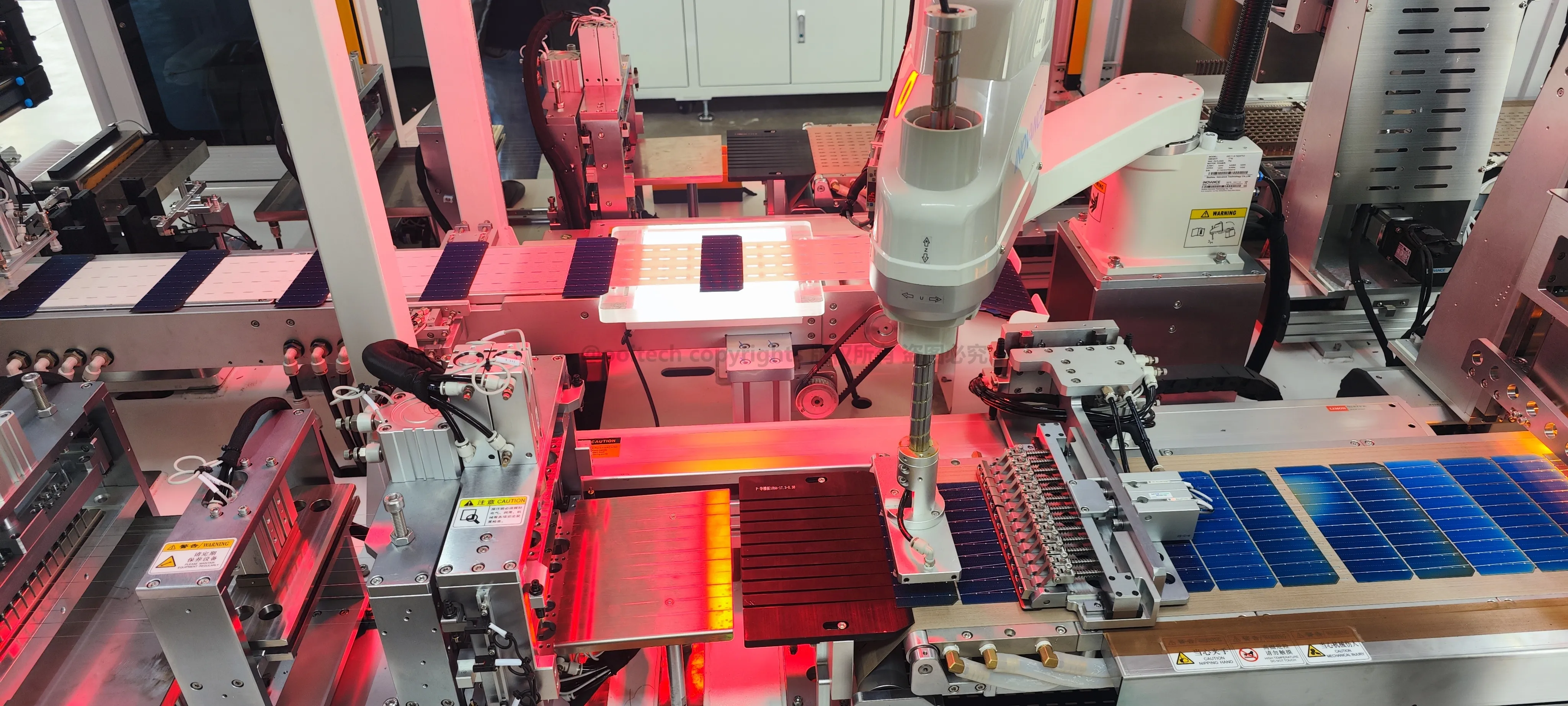

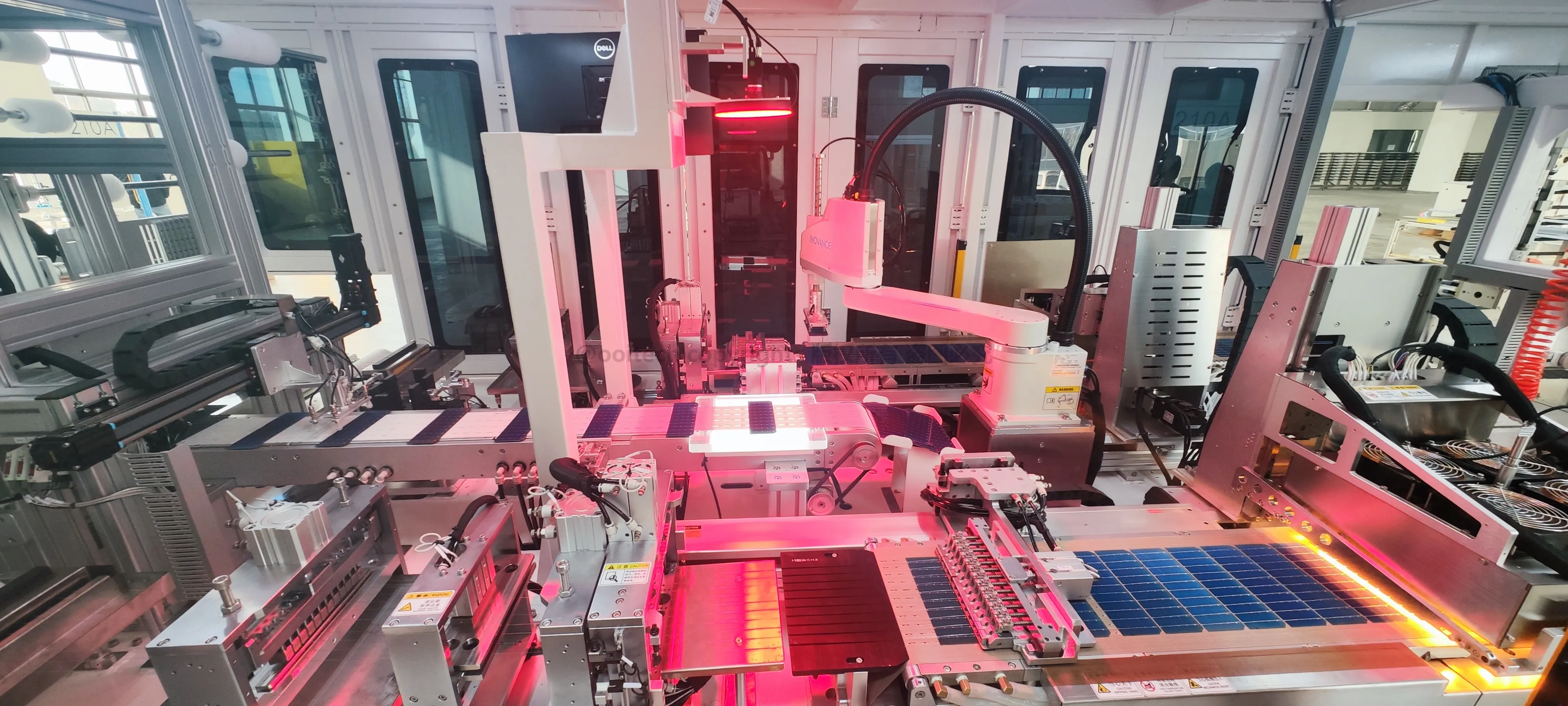

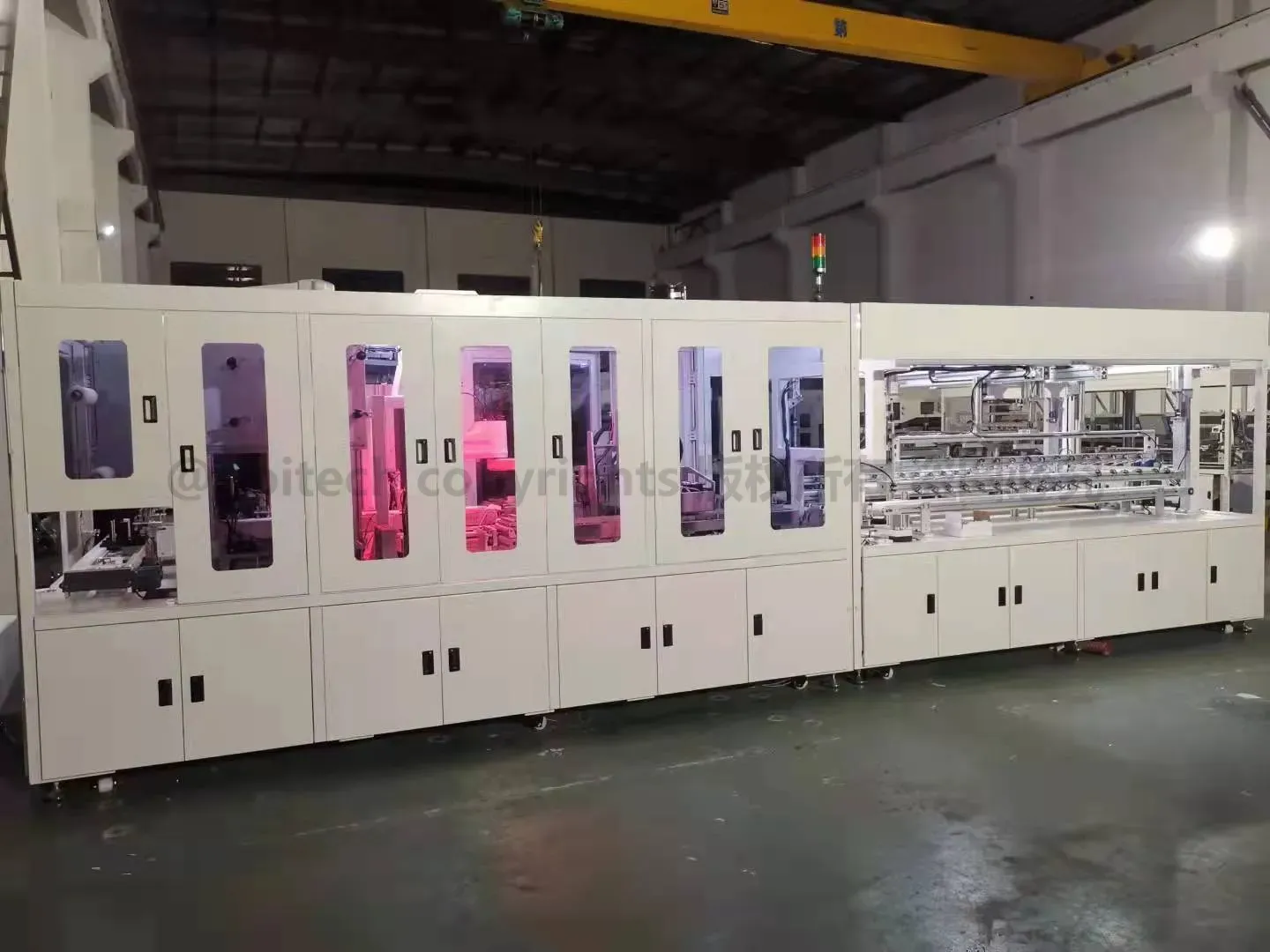

The SS-2500B Full Automatic Tabber Stringer Machine represents Ooitech's advanced solution for high-speed crystalline silicon solar cell interconnection in modern photovoltaic module manufacturing. This sophisticated equipment seamlessly integrates infrared welding technology with intelligent robotic handling systems to deliver exceptional production efficiency exceeding 2400PCS per hour.
Designed for versatility and precision, the SS-2500B accommodates various cell sizes from 156-210mm with customizable configurations for cell spacing, string length, and welding parameters. The system employs advanced CCD vision technology for real-time quality inspection and positioning, ensuring consistent output quality with minimal breakage rates below 0.2%.
The complete system architecture includes automatic feeding mechanisms, robotic arm positioning and transport systems, CCD appearance inspection modules, flux spraying units, ribbon handling mechanisms, infrared welding stations, temperature control units, string transfer systems, and collection mechanisms - all integrated within a robust industrial framework optimized for 24/7 production environments.
Technical Specifications
Performance Parameters Table
| Parameter | Specification |
|---|
| Model | SS-2500B |
| Production Capacity | ≥2400PCS/H |
| Breakage Rate | ≤0.2% (Grade A cells) |
| Compatible Cell Sizes | 156-210mm × 1/4-1/2 |
| Cell Thickness | 0.16-0.25mm |
| Busbar Compatibility | 3BB-13BB (upgradeable to 20BB) |
| Ribbon Specifications | Width: 0.35-1.2mm, Thickness: 0.15-0.25mm |
| Welding Method | Infrared heating |
| Number of Welding Heads | 2 |
| Magazine Capacity | 5 boxes × 250PCS/box |
| Cell Gap Range | 1.5-10mm (adjustable) |
| Maximum String Length | 2000mm |
| Positioning Accuracy | ±0.02mm (robotic repeatability) |
Equipment Specifications
| Parameter | Specification |
|---|
| Control System | PLC + Touch Screen + Servo + Module + Robot |
| Power Requirements | 380VAC/50Hz, Three-phase five-wire |
| Rated Power | 20KW |
| Air Supply | 6-8Bar: 800L/min; Inlet diameter: 16mm |
| Dimensions (L×W×H) | 8200mm × 1900mm × 2300mm |
| Working Height | 900mm ± 25mm |
| Weight | 4500Kg |
| Noise Level | <80dB |
| Software Updates | Lifetime free upgrades |
Technical Advantages
Advanced Automation Features

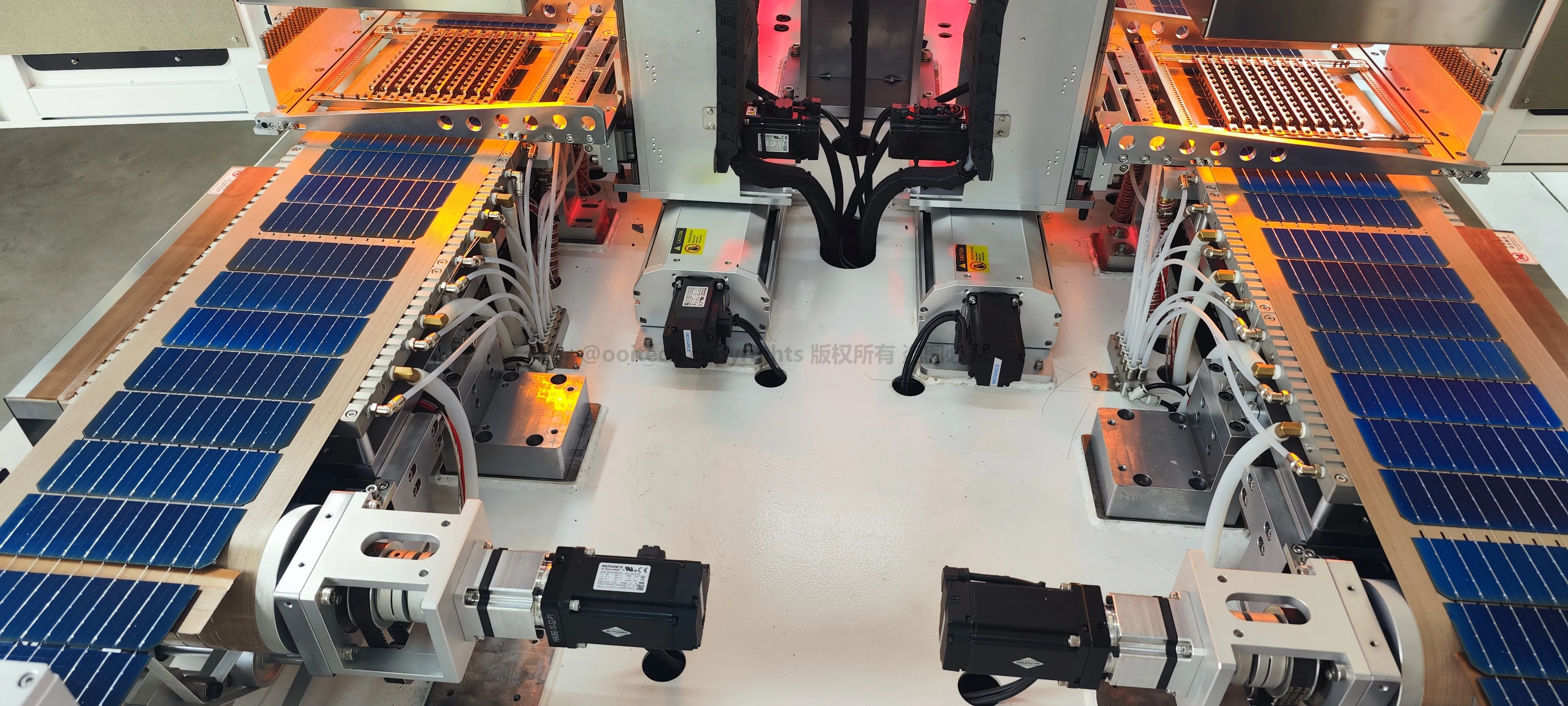

Dual-Station Simultaneous Welding: Maximizes throughput with parallel processing capabilities

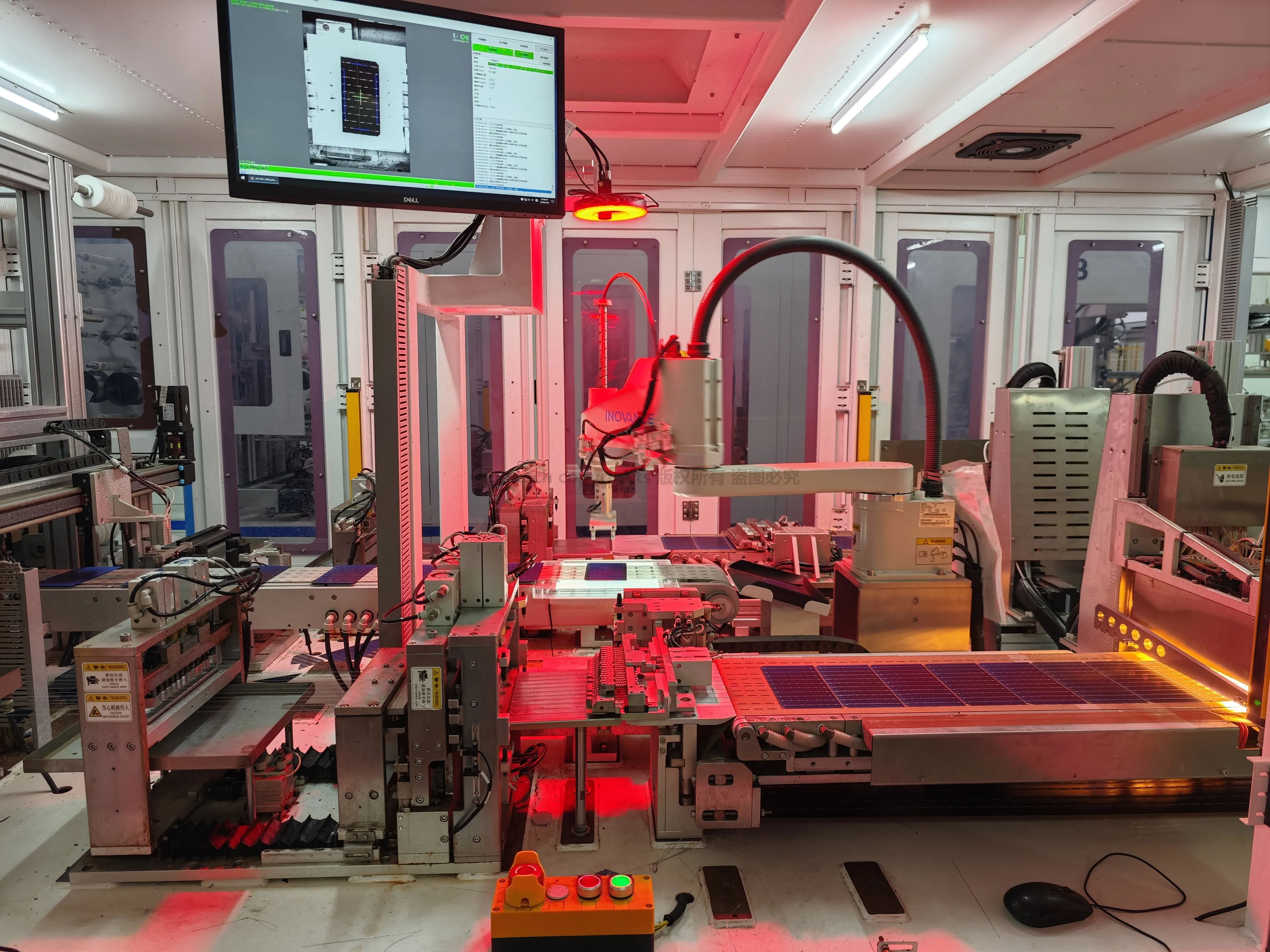

Intelligent CCD Vision System: Real-time detection of grid lines, corner defects, and cell positioning

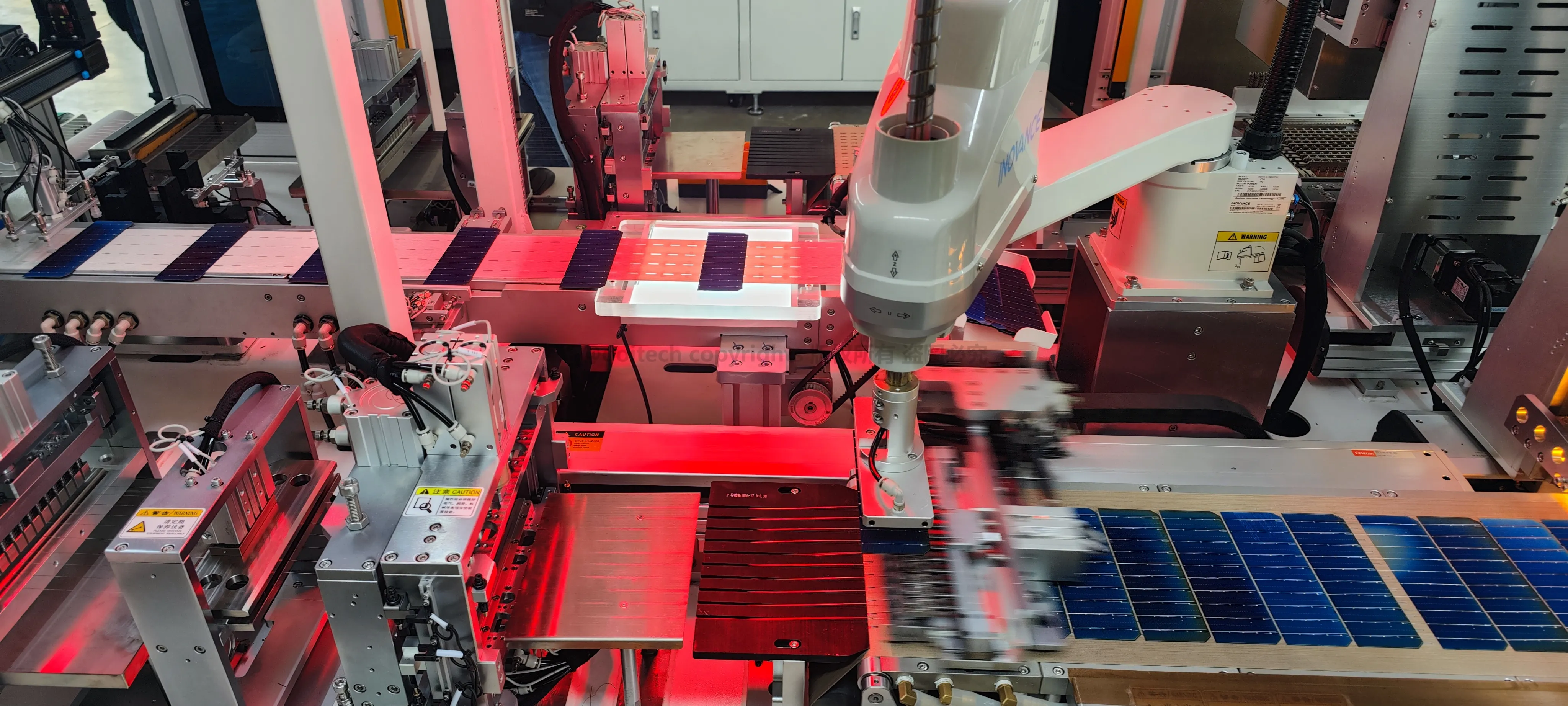

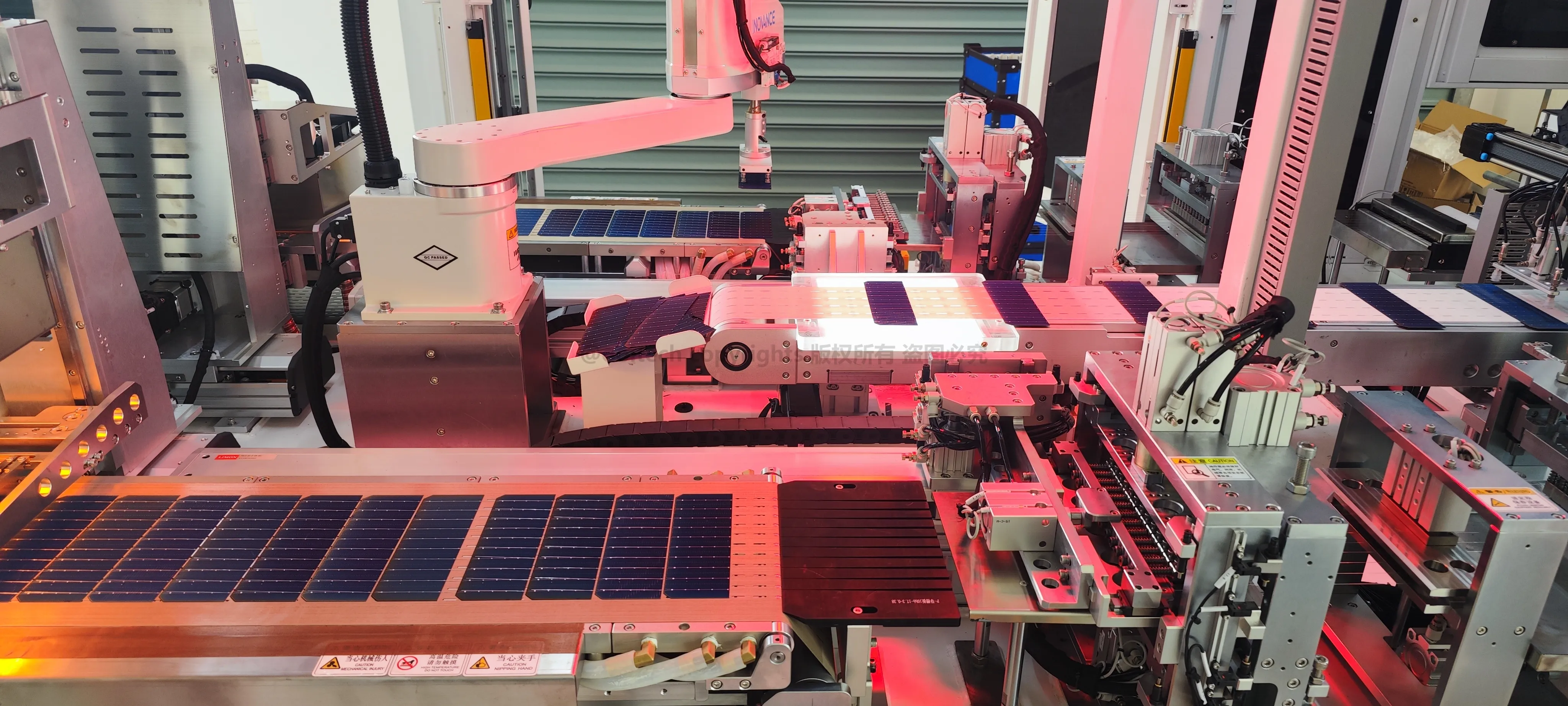

Robotic Precision Handling: ±0.02mm positioning accuracy ensures consistent string quality
Adaptive Cell Compatibility: Supports multiple cell formats from M6 to M12, including half-cut and third-cut configurations
Quality Assurance Excellence
Ultra-Low Breakage Rate: Industry-leading<0.2% breakage for Grade A cells
Automatic Defect Rejection: Intelligent sorting system removes damaged cells automatically
Real-Time Monitoring: Comprehensive fault detection and alarm system with<4% production alarm rate
Operational Efficiency
Quick Changeover: Average setup time ≤40 minutes for different cell types
Flexible Configuration: Programmable cell spacing, string length, and temperature parameters

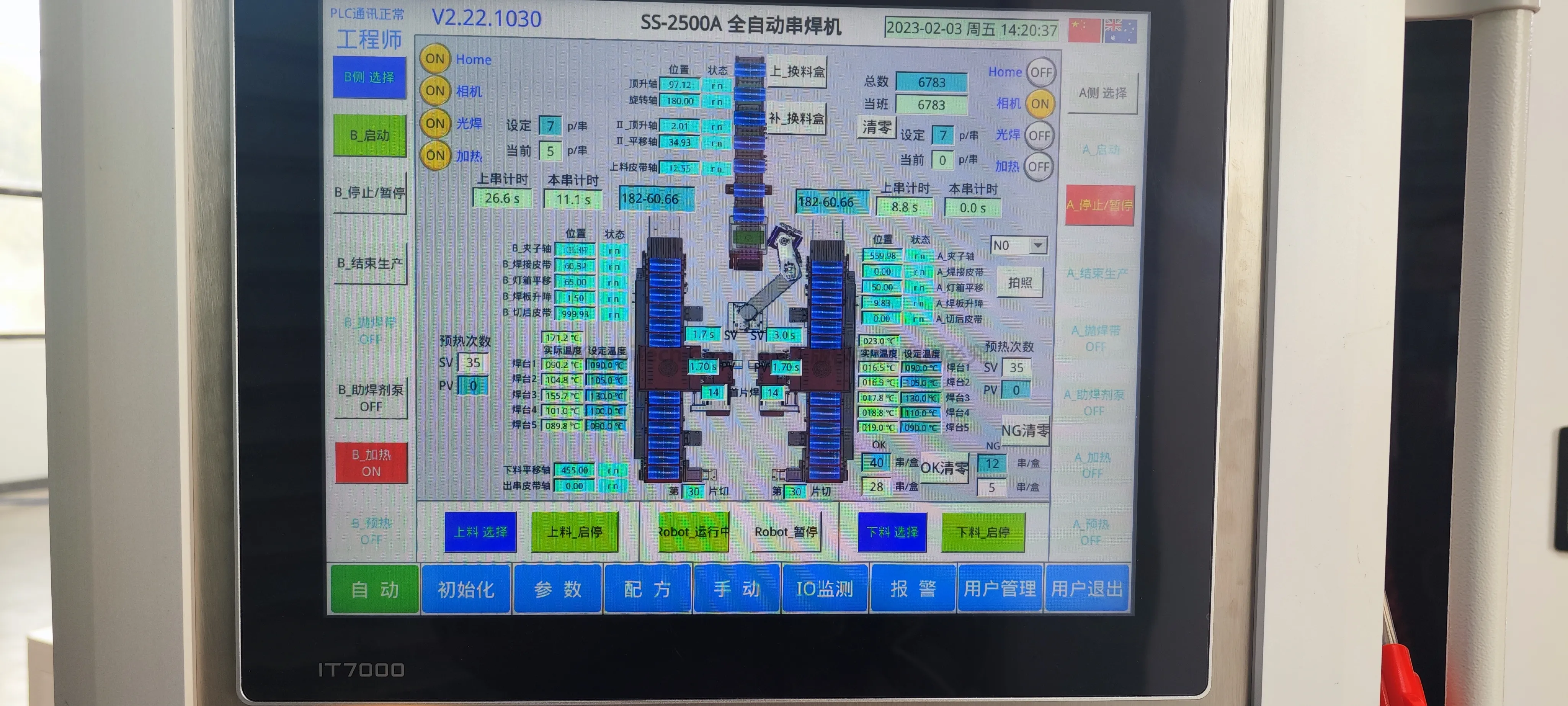

User-Friendly Interface: Intuitive touch screen control with visual operation guidance
Energy Efficient Design: Optimized 20KW power consumption for high-volume production
Product Applications
Mainstream Solar Module ProductionThe SS-2500B excels in manufacturing standard solar panels for residential, commercial, and utility-scale applications. Compatible with PERC, TOPCon, IBC, ABC, and HPBC cell technologies, it supports the production of high-efficiency modules ranging from 5MW to 1GW annual capacity.
Advanced Module Technologies
Multi-Busbar (MBB) Modules: Optimized for 3BB to 13BB configurations with upgrade path to 20BB

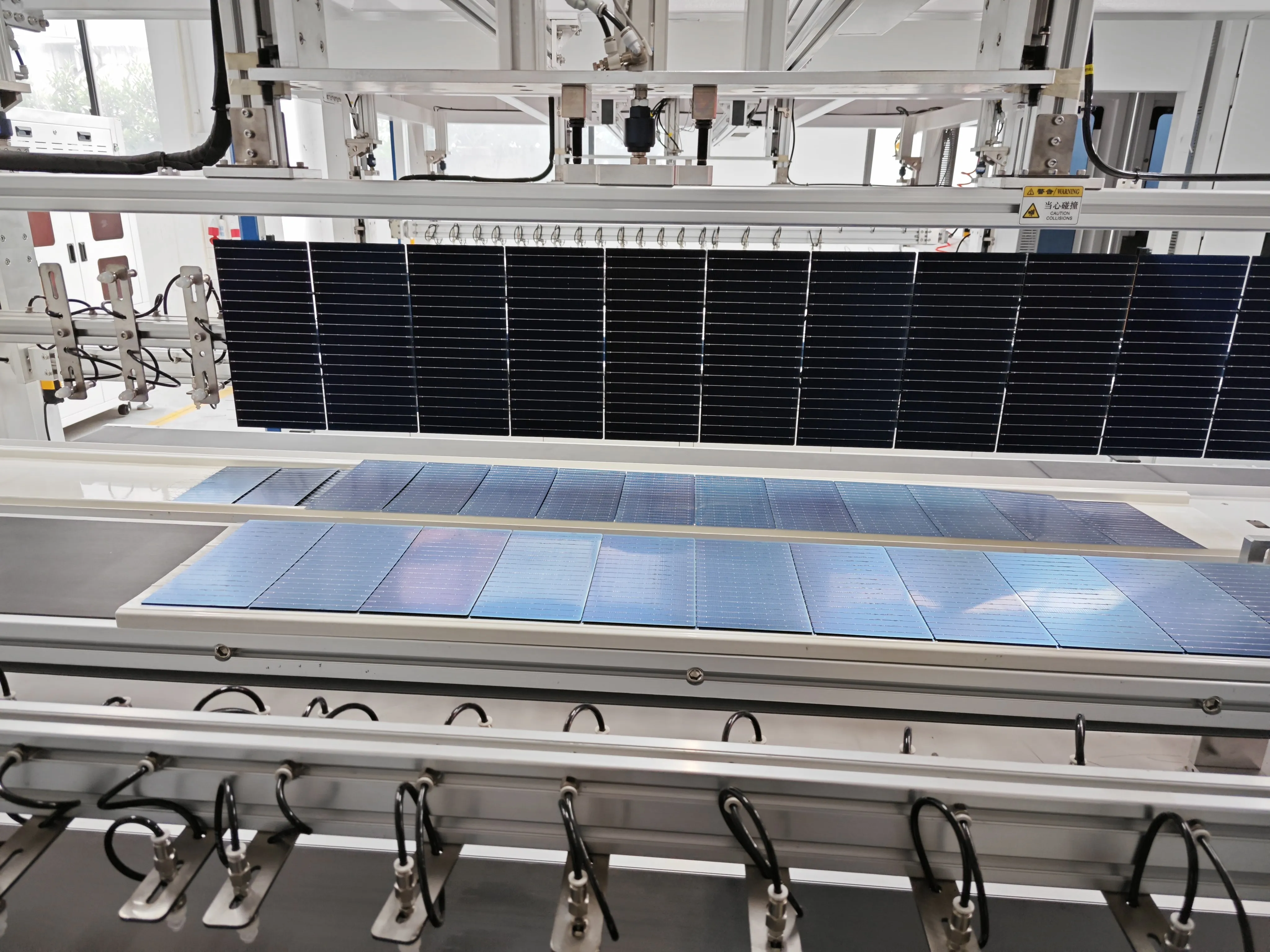

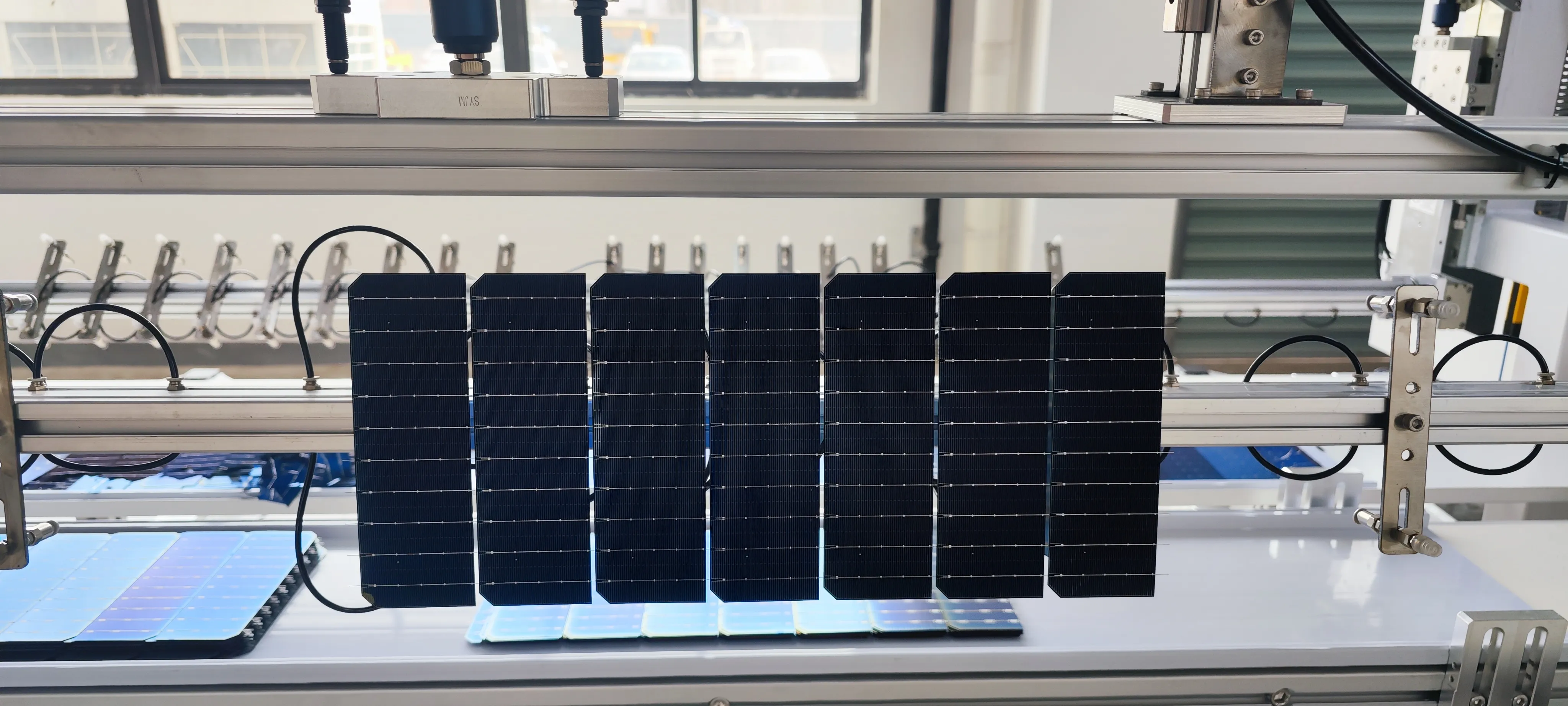

Half-Cut Cell Modules: Precision handling for 1/2 cut cells with minimal stress
Shingled Solar Panels: Adaptable spacing control for overlapping cell designs
Bifacial Module Assembly: Gentle handling preserves cell integrity for double-sided modules
Flexible Production Scenarios
High-Volume Manufacturing: Continuous operation capability for large-scale production facilities
Custom Module Production: Programmable parameters for specialized project requirements
R&D Applications: Versatile platform for new cell technology validation and testing
Smart Factory Integration: Compatible with Industry 4.0 automation systems
