Quick answer: The Ooitech automatic tape sticking machine applies adhesive tape automatically on a solar panel production line. It works with tape widths around 2 mm and 10 mm, handles working areas to about 2,500 mm by 1,580 mm with an 800 mm and 1,400 mm allowance, runs on 380 V, and holds a positioning repeatability near 0.5 mm with an application variance around 20%. Tape is used to hold strings and busbar in position between layup and lamination, and to insulate where a joint would otherwise sit against the backsheet. A tape that is skewed or short still passes visual inspection but shifts during the vacuum stage of lamination. That is why the placement tolerance, not the application speed, is the specification worth checking.
PV Module Manufacturing · by Jerry, Ooitech
Automatic Tape Sticking Machine for Solar Panel Production Line
Professional Adhesive Tape Application Solution by Ooitech

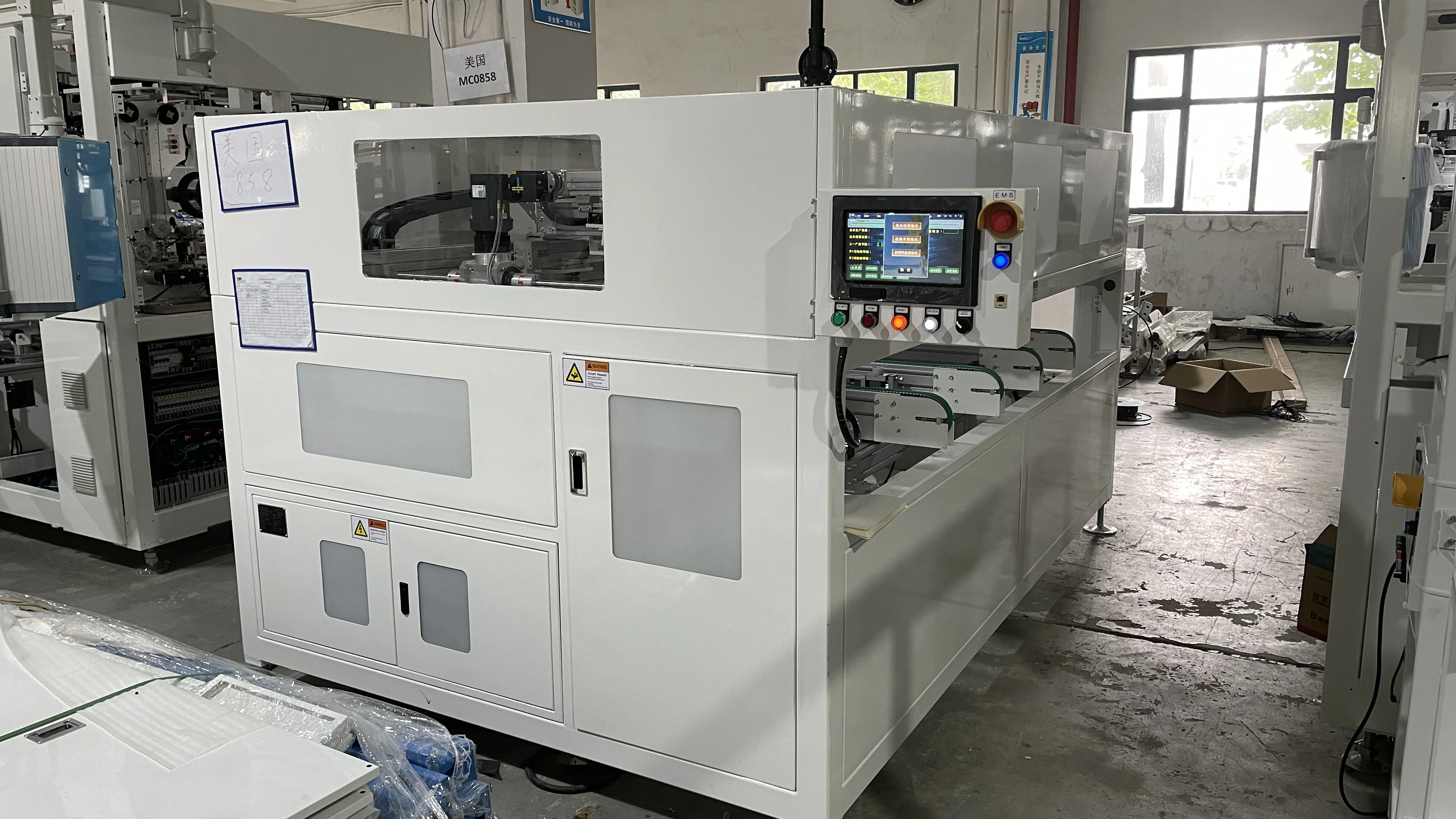

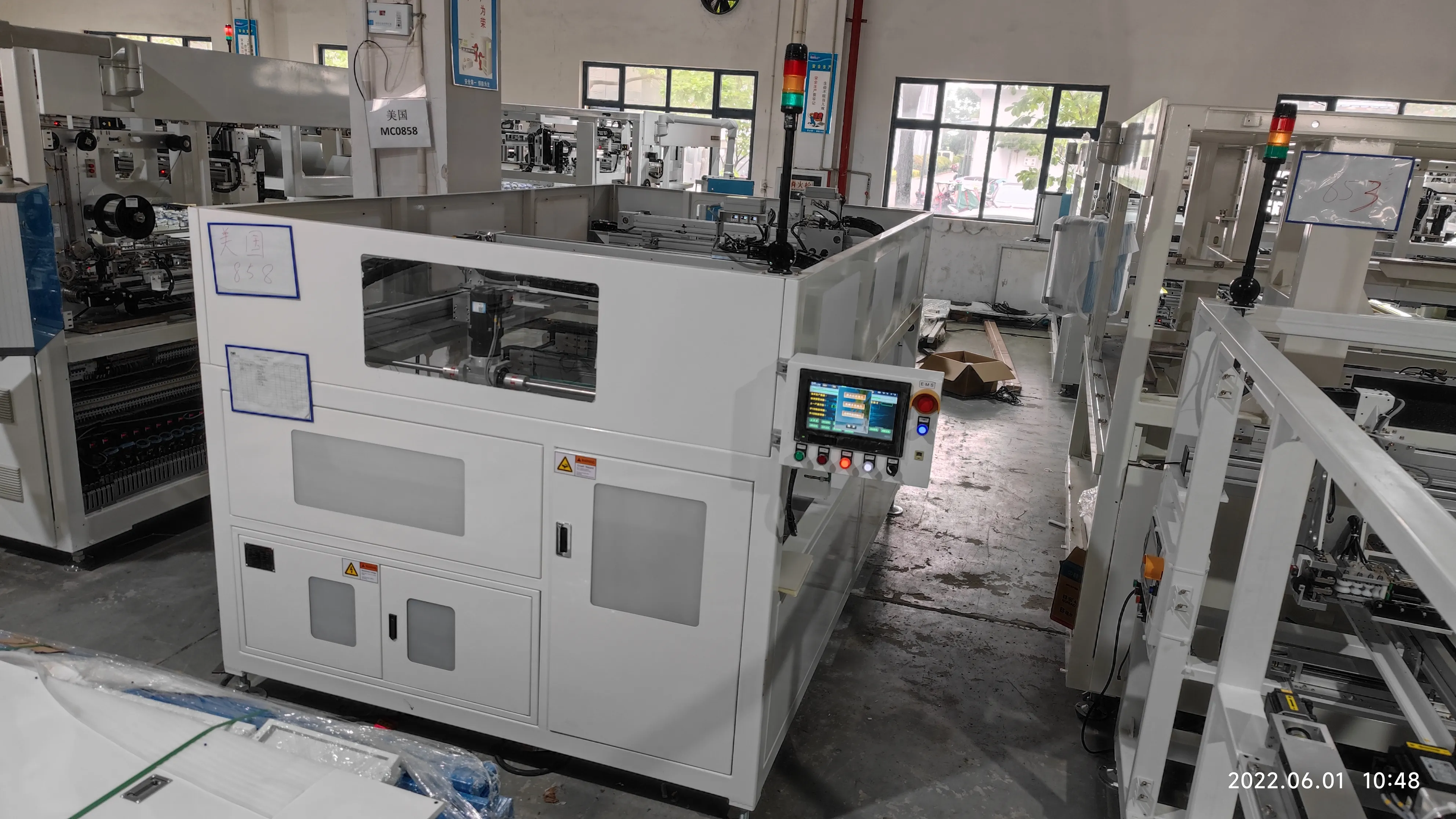

The Ooitech Automatic Tape Sticking Machine is an advanced automated solution designed for solar panel production lines, engineered to apply adhesive tape on cell strings with exceptional speed, precision, and consistency. This machine eliminates the need for manual tape application, significantly reducing labor costs while dramatically improving production efficiency and product quality.
The equipment automatically feeds modules in and out of the workstation, applies adhesive tape at precisely programmed positions, and handles various tape types including release paper tape with automatic recycling, Sigang thin tape, and other thick tapes. With configurable 2-head or 4-head setups, the machine adapts to diverse production requirements while maintaining a cycle time of 25 seconds or less. The tape application position deviation is controlled within ±2mm, ensuring consistent quality without causing secondary damage to solar cells.
This machine is fully compatible with a wide range of solar module formats, supporting module sizes from 1580mm to 2500mm in length and 800mm to 1400mm in width. It seamlessly integrates into existing production lines for manufacturing PERC, TOPCon, IBC, ABC, HPBC, shingled, and other mainstream solar panel technologies using G1, M6, M10, and M12 cell formats.
Watch our full MBB automatic solar panel production line in action: Ooitech YouTube Channel
Technical Parameters
Equipment Specifications
| Parameter | Specification |
|---|
| Compatible Module Size | (1580–2500) x (800–1400) mm |
| Number of Tape Heads | 2 heads or 4 heads |
| Compatible Tape Width | 5mm–10mm (±0.5mm) |
| Cycle Time (2 Heads, 14 Tapes) | ≤25s |
| Cycle Time (4 Heads, 24 Tapes) | ≤25s |
| Tape Head Replacement Time | ≤2 min per head |
| Tape Position Deviation | ±2mm or less |
| Tape Pull Strength | ≥4N/cm |
| Cell Breakage Rate | ≤0.01% (average) |
| Tape Defective Rate | ≤0.1% (average) |
| Failure Rate | ≤0.5% (monthly average) |
| Daily Maintenance Time | ≤10 min |
| Paste Quality | No fold during application |
Electrical and Installation Parameters
| Parameter | Specification |
|---|
| Power Supply | Three-phase five-wire 380V, 50Hz, AC ±20% |
| Peak Power Consumption | ≤3000W |
| Production Line Match Height | 950 ±50mm |
| Noise Level | ≤60dB (normal operation) |
| Electric Cabinet Protection Rating | IP61 |
| Special Environment Protection | IP65 (flammable/explosive environments) |
| Floor Space | Customizable to workshop layout |
Compatible Tape Types
| Tape Type | Compatibility |
|---|
| Release Paper Tape | Yes (with automatic recycling) |
| Sigang Thin Tape | Yes |
| Other Thick Tape | Yes |
Technical Advantages
Intelligent Automation and High Efficiency
Fully Automatic Operation: Modules feed in and out automatically with no manual intervention required during the tape application process, maximizing production throughput.
High-Speed Performance: Achieves cycle times of ≤25 seconds for both 2-head (14 tapes) and 4-head (24 tapes) configurations, meeting high-volume production demands.
Multi-Head Configuration: Available with 2 or 4 tape heads, allowing flexible adaptation to different production volume and tape quantity requirements.
Quick Changeover: Each tape head can be replaced in under 2 minutes, minimizing downtime during material changes.
Folding Aisle Design: Equipment features a folding aisle for convenient access to middle tape heads during refilling, reducing maintenance complexity.
Precision and Quality Assurance
High-Precision Positioning: Tape application deviation controlled within ±2mm, ensuring accurate and consistent tape placement on every module.
Zero Secondary Damage: Gentle handling process ensures cell breakage rate remains below 0.01%, protecting your valuable solar cells.

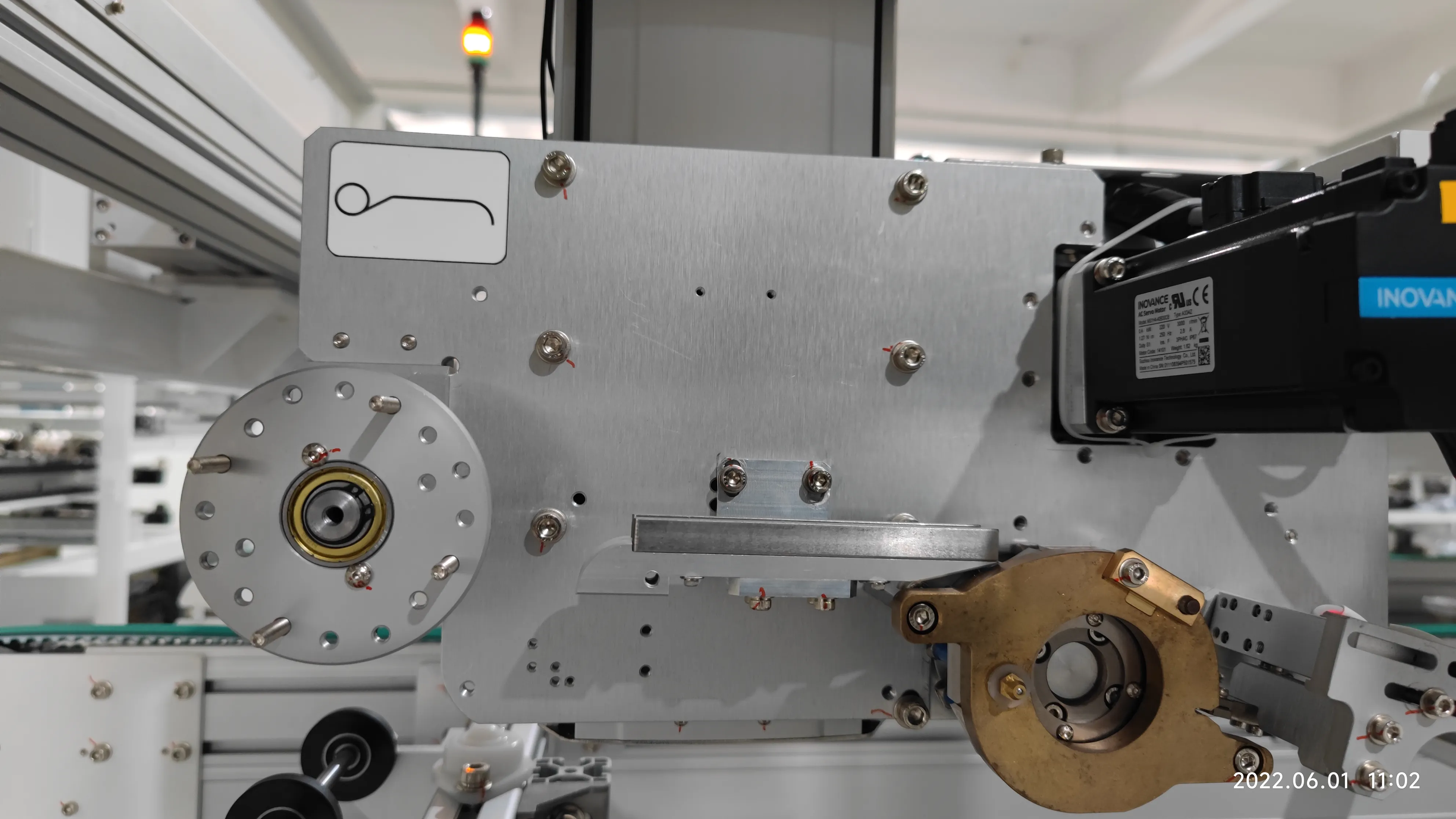

Fold-Free Application: Advanced tape pressing mechanism guarantees smooth, fold-free adhesive tape application every time.
Strong Adhesion: Pasted tape pull strength of ≥4N/cm ensures reliable long-term bonding performance.
Ultra-Low Defect Rate: Tape defective rate maintained at ≤0.1% average, supporting stringent quality control standards.
Smart Production Management
MES System Integration: Free docking with MES and other production automation systems, supporting real-time output recording, remote equipment monitoring, material tracking, and process parameter management.
Real-Time Monitoring: All input elements can be monitored on the human-machine interface; all output elements can be controlled directly from the touchscreen.
Production Data Recording: On-duty production information recording with adjustable starting time, real-time cycle time recording (saves ten records), and equipment operation journal.
Predictive Maintenance: Built-in maintenance prediction function with forced stopping capability, maintenance item display, and tape margin forecast to prevent unexpected downtime.
Self-Diagnosis: Common breakdown check instructions and self-diagnosis functionality for rapid troubleshooting.
Bilingual Interface: Proface touchscreen with Chinese and English switchable interface for international production environments.
Safety and Compliance
Comprehensive Safety Protection: Safety interlocking gates with alarm units, emergency stop and reset buttons, acousto-optic alarm indicators, and leakage protection devices.
Compliant with National Standards: Meets GB30754-2014, GB5226.1-2008, GB11291.1-2011, and GB11291.2-2013 safety standards for mechanical and electrical equipment.
Environmental Monitoring: Real-time closed-loop monitoring of temperature, wind speed, and dust levels in flammable or explosive areas with out-of-range alarm and automatic shutdown.
Durable Components: Tank chains and movement mechanisms rated for over 10 million cycles, ensuring long-term reliability.
IP-Rated Protection: Electric cabinet achieves IP61 protection rating; all electrical components in hazardous environments meet IP65 safety levels.
Product Applications
Solar Panel Manufacturing Lines
The Ooitech Automatic Tape Sticking Machine is an essential piece of equipment in modern solar panel production lines. It is strategically positioned after the tabber stringer and layup station, applying adhesive tape to cell strings before the lamination process. This ensures structural integrity and electrical insulation of the cell interconnections.
Compatible Solar Panel Technologies:
PERC (Passivated Emitter and Rear Cell) modules
TOPCon (Tunnel Oxide Passivated Contact) modules
IBC (Interdigitated Back Contact) modules
ABC and HPBC technology modules
Shingled solar modules
MBB (Multi-Busbar) solar panels
Half-cut and full-cell configurations
Compatible Cell Formats:
G1, M6, M10, and M12 cell sizes
Module dimensions from 1580mm x 800mm to 2500mm x 1400mm
Production Scale Applications:
Small-scale production facilities (5MW–50MW)
Medium-scale manufacturing plants (50MW–200MW)
Large-scale gigawatt-level production lines (200MW–1GW)
The machine integrates seamlessly with other Ooitech production line equipment including solar cell laser cutting machines, tabber stringers, layup machines, bussing machines, EL testers, laminators, framing machines, and IV testers to form a complete automated solar panel manufacturing solution.
Contact Us to Get a Quote
Partner with Ooitech for Your Solar Panel Production Line
Ooitech is a leading provider of complete solar panel production line solutions, covering equipment design, delivery, installation, operator training, raw material supply, and comprehensive after-sales service for production capacities ranging from 5MW to 1GW.
Whether you are building a new solar panel factory or upgrading your existing production line, our team of experienced engineers will help you select the right configuration of the Automatic Tape Sticking Machine and all supporting equipment to meet your specific production goals.
