Product Introduction
The Ooitech Solar Panel Frame Removal Machine is an advanced automated deframing solution specifically designed for efficient solar panel recycling and component separation. This hydraulic-driven system revolutionizes the PV module recycling process by safely and efficiently removing aluminum frames from solar panels without damaging the valuable internal components. With its robust 5-ton construction and intelligent control system, this machine serves as an essential equipment for solar panel recycling facilities, PV manufacturers conducting quality control, and sustainability-focused operations seeking to maximize material recovery from end-of-life solar modules.

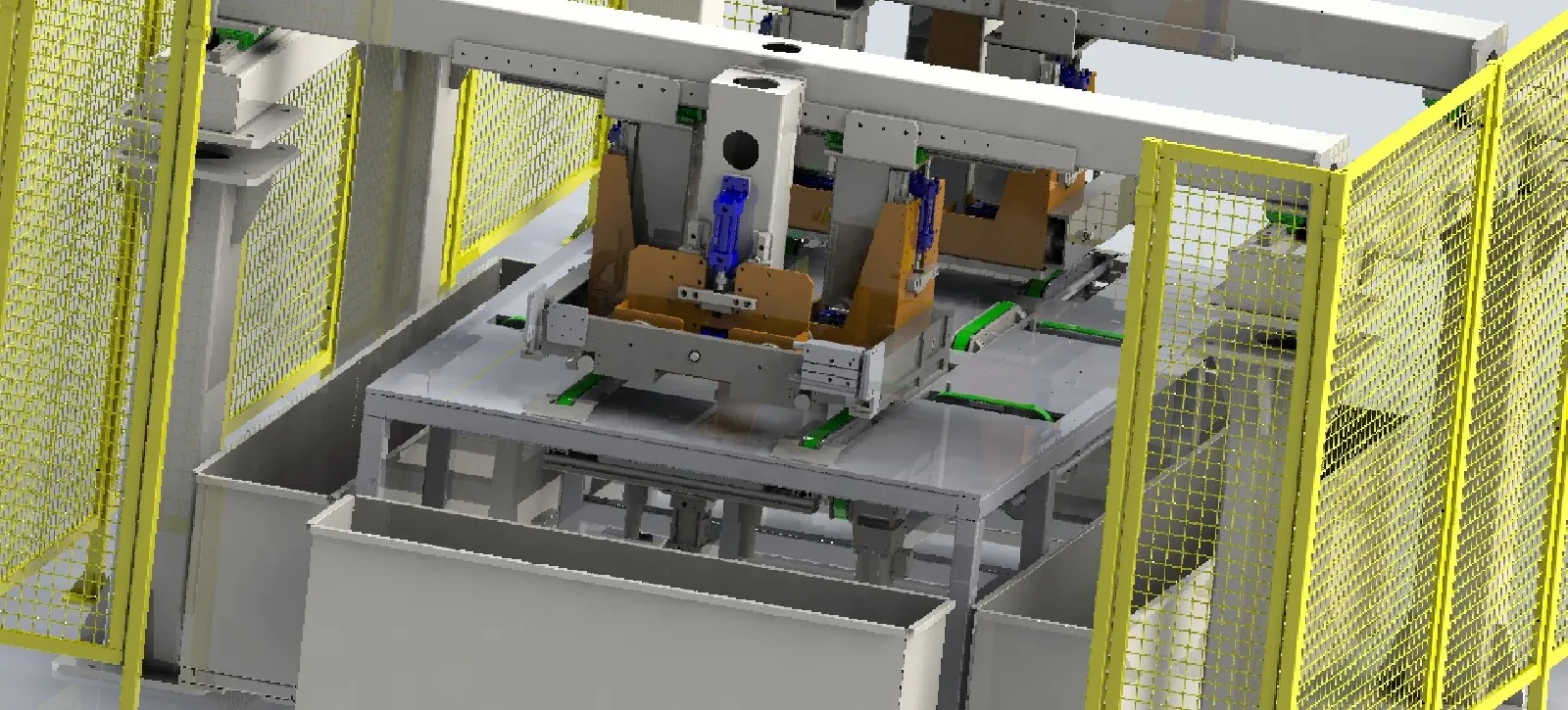

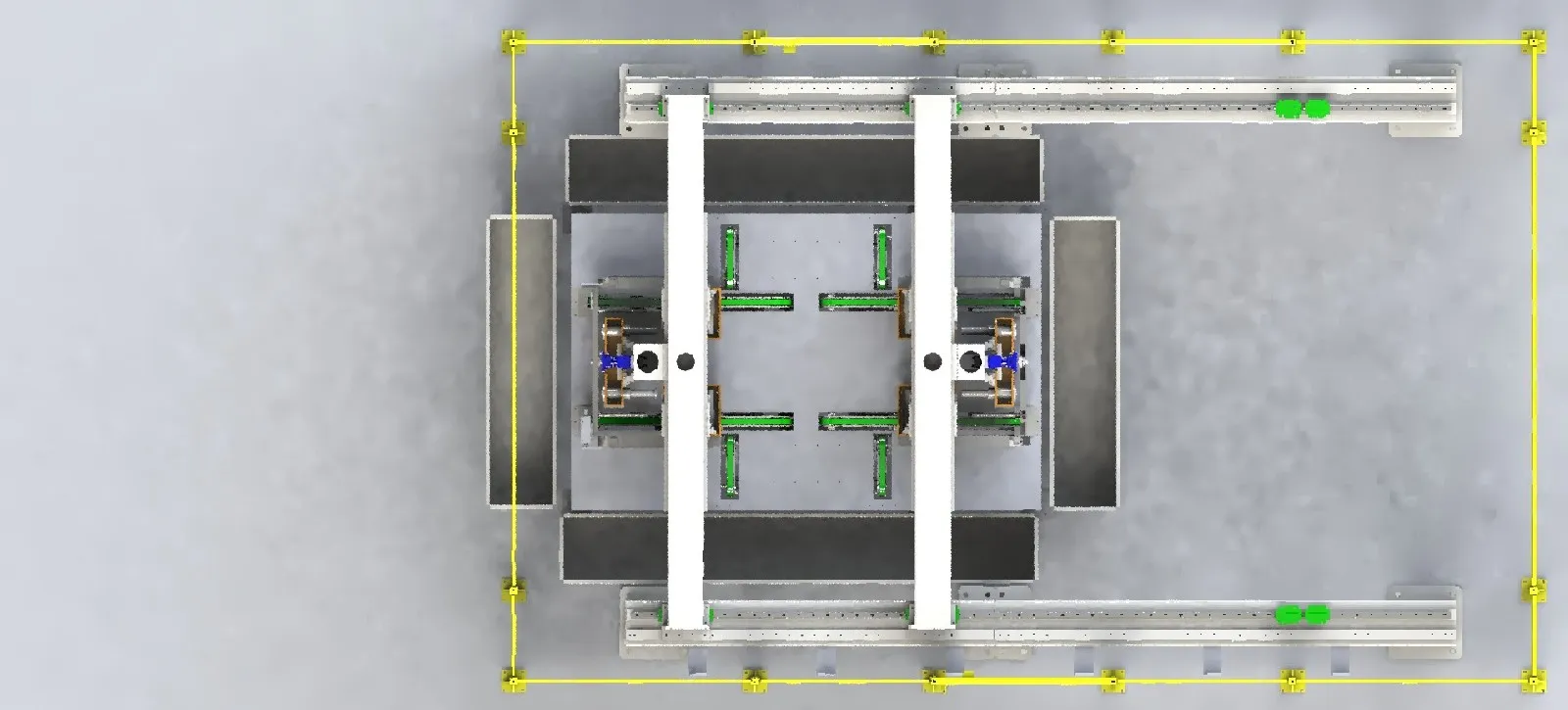

The system integrates seven key components including peripheral protective nets for operator safety, an adjustable gantry beam for various panel sizes, precision alignment mechanisms, and automated frame collection systems, ensuring a complete turnkey solution for industrial-scale deframing operations.
Technical Specifications
| Parameter | Specification |
|---|
| Equipment Dimensions (L×W×H) | 3500 × 3500 × 2000 mm |
| Total Weight | 5 tons |
| Drive Type | Hydraulic Drive System |
| Power Requirement | 10 kW |
| Compatible Panel Length | 1500-2500 mm |
| Compatible Panel Width | 900-1400 mm |
| Frame Removal Method | Four-sided hydraulic pressing |
| Control System | PLC-based automation |
| Safety Features | Peripheral protective net enclosure |
| Frame Collection | Integrated collection box system |
| Operating Mode | Semi-automatic with manual loading |
| Production Capacity | Up to 120 panels/hour* |
*Actual capacity depends on panel size and operator efficiency
Technical Advantages
1. Superior Hydraulic Actuation System
Delivers exceptional driving force up to 50 tons of pressing power
Ensures consistent and reliable frame separation
Minimal maintenance requirements with industrial-grade hydraulic components
Smooth operation reduces mechanical stress on panels
2. Low Component Breakage Rate
Multiple substantial pressing points distribute force evenly
Precision-engineered clamping mechanisms protect glass surface
Adjustable pressure settings for different panel types
Industry-leading breakage rate below 0.5%
3. Flexible Size Compatibility
Accommodates all standard solar panel sizes (G1, M6, M10, M12)
Quick adjustment system for different panel dimensions
Suitable for both 60-cell and 72-cell modules
Compatible with bifacial and monofacial panels
4. Automation-Ready Design
Seamlessly integrates with automated loading/unloading systems
Compatible with robotic handling equipment
PLC interface for production line integration
Real-time monitoring and data logging capabilities
5. Efficient Workflow Process
Automated 9-step deframing sequence
Four-sided simultaneous alignment ensures precision
Intelligent frame collection and sorting system
Minimal operator intervention required
Product Applications
Solar Panel Recycling Facilities
The frame removal machine serves as the critical first step in solar panel recycling operations, efficiently separating valuable aluminum frames from modules for material recovery. This equipment enables recycling facilities to process large volumes of end-of-life panels while preserving the integrity of silicon cells and other recoverable materials.
PV Manufacturing Quality Control
Manufacturers utilize this equipment for quality inspection and rework processes, allowing them to remove frames from defective panels for component testing or module refurbishment. The low breakage rate ensures minimal loss during quality control procedures.
Research and Development Centers
R&D facilities employ the frame remover for panel analysis, component testing, and failure analysis studies. The precise control and gentle handling make it ideal for preserving samples for detailed examination.
Solar Farm Decommissioning Projects
Large-scale solar farm decommissioning projects benefit from the machine's high capacity and reliability, enabling efficient processing of thousands of panels during site remediation and equipment upgrade projects.
Circular Economy Initiatives
Supports sustainability goals by facilitating the recovery and recycling of solar panel materials, contributing to the circular economy in the renewable energy sector.
