Product Introduction

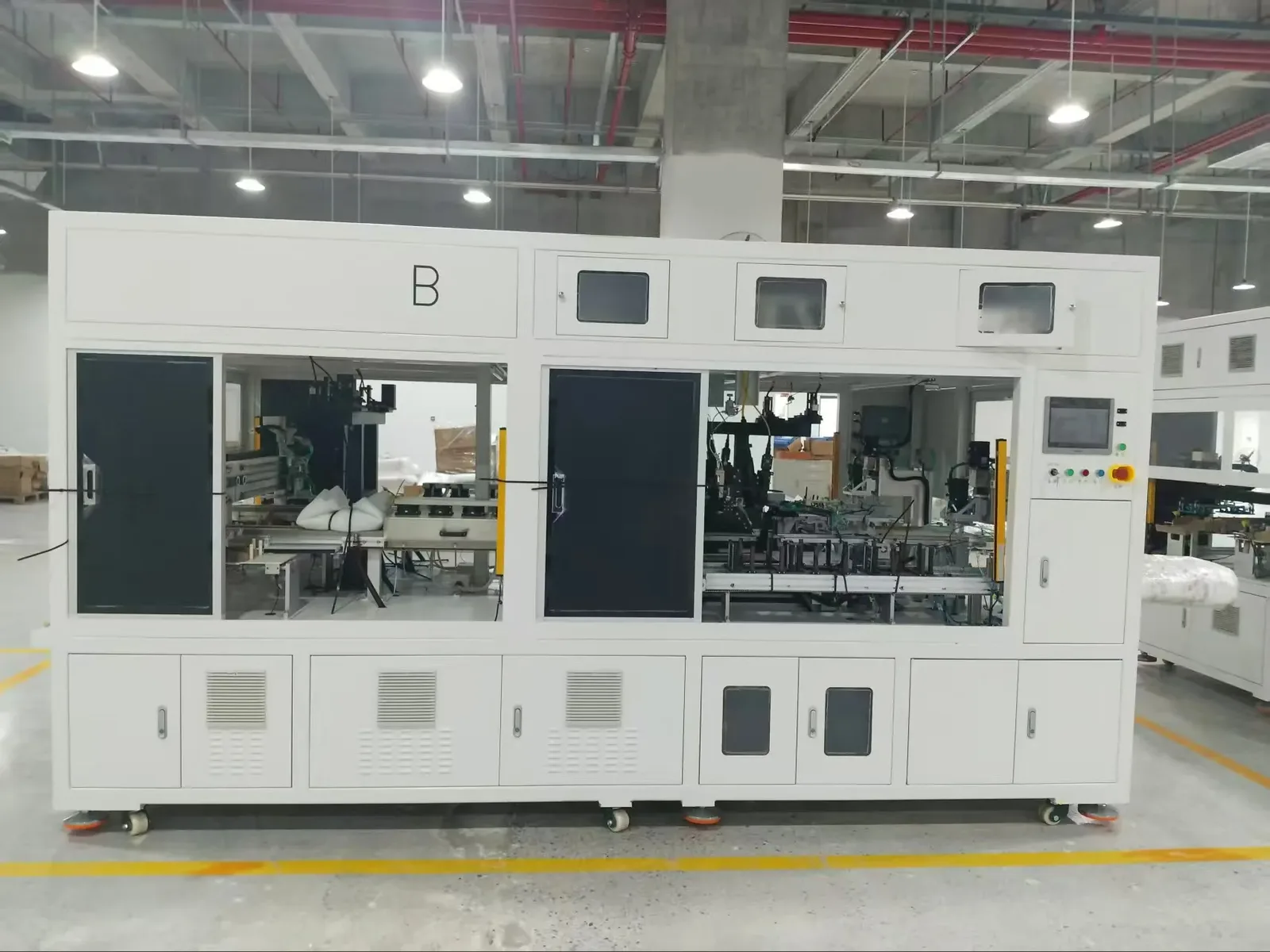

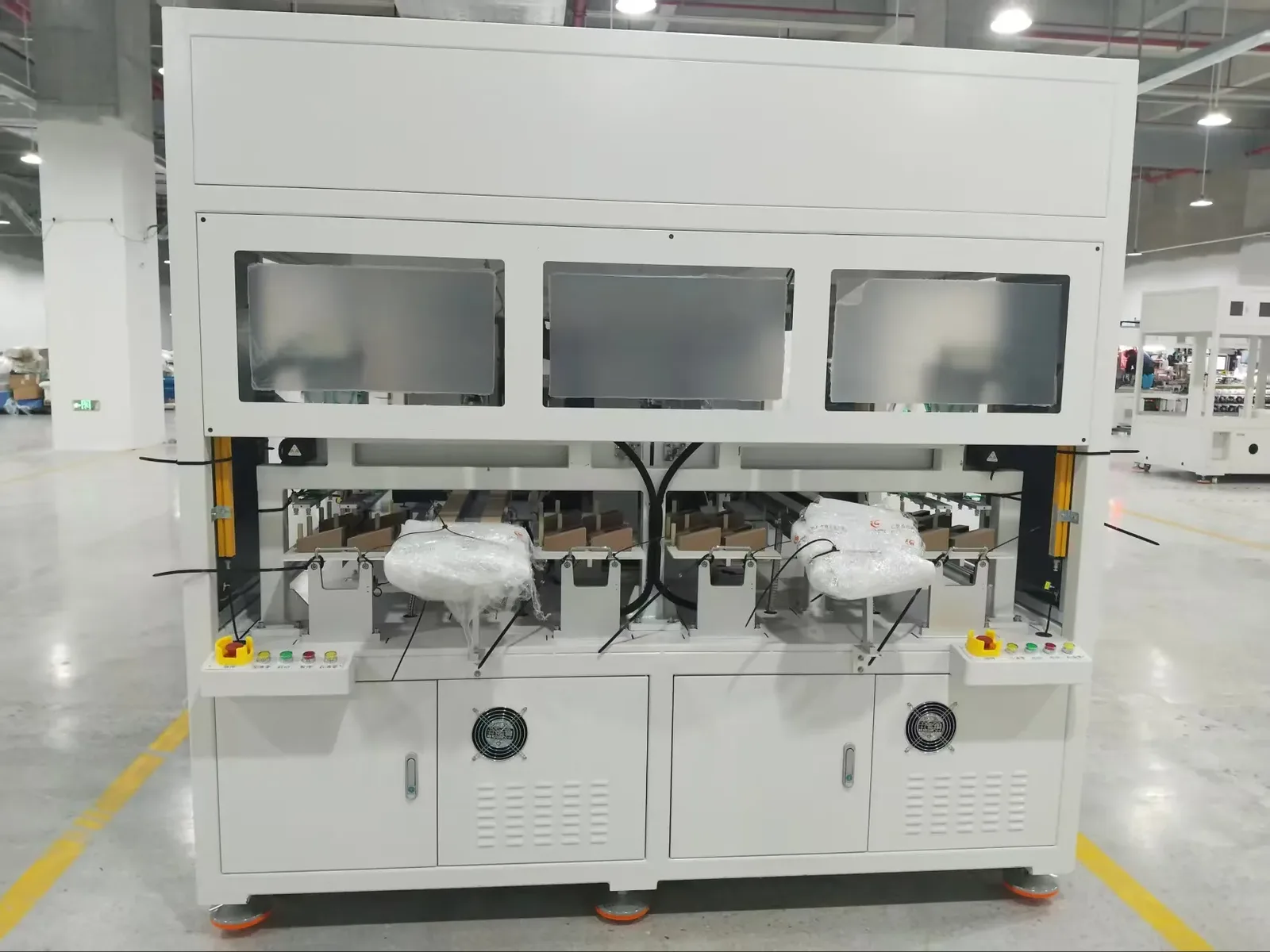

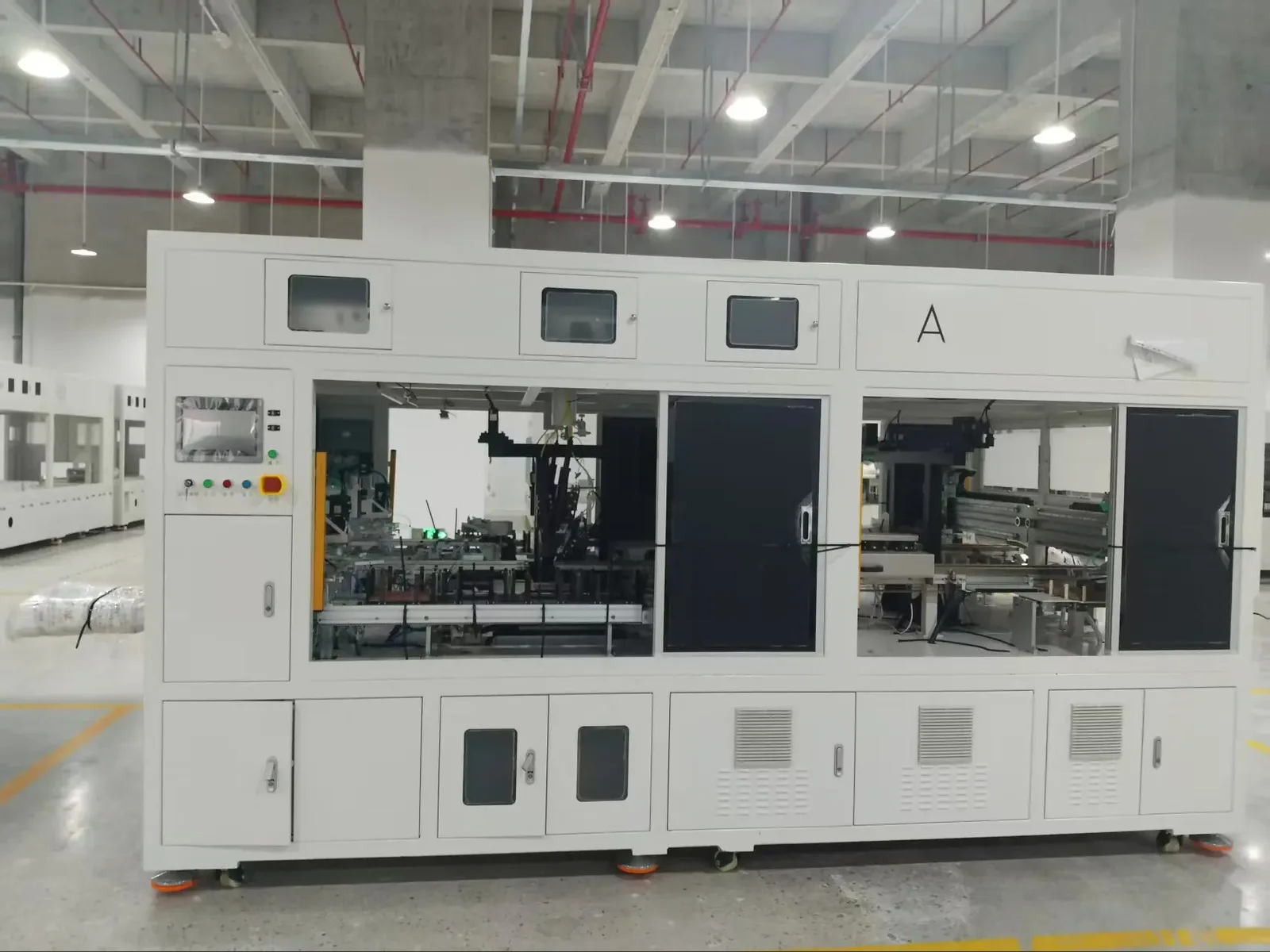

The GYM-HP8000 Non-Destructive Solar Cell Laser Cutting Machine represents a revolutionary advancement in photovoltaic cell processing technology. Unlike traditional thermal melting and mechanical breaking methods, this cutting-edge equipment utilizes Thermal Stress Control (TCS) technology to achieve precise, damage-free cell separation. By creating controlled temperature differentials through laser heating and localized cooling, the system induces thermal stress that reaches the fracture threshold, enabling clean cell division without compromising structural integrity.
This fully automated production system is specifically designed for the evolving needs of modern solar panel manufacturing, supporting the industry's transition to larger wafers, thinner cells, and higher efficiency modules. The machine seamlessly handles the complete production workflow from cell loading through cutting to final collection, ensuring consistent high-quality output for advanced solar panel configurations including small-gap, negative-gap, and ultra-thin cell assemblies.
Ooitech's expertise in solar panel production line equipment ensures this machine integrates perfectly with existing manufacturing systems, supporting MES connectivity and Industry 4.0 standards. The equipment is engineered for maximum reliability with ≥98% uptime and minimal maintenance requirements.
Technical Specifications
Machine Parameters
| Parameter | Specification |
|---|
| Production Capacity | 7,600 pcs/hour |
| Cell Compatibility | 166mm×166mm - 210mm×210mm |
| Cell Thickness Range | 120μm - 220μm |
| Cutting Configuration | Standard 1/2 cut (customizable) |
| Breakage Rate | ≤0.03% (A-grade cells) |
| Cutting Straightness | ±0.075mm |
| Operating Temperature | 25°C ± 10°C |
| Relative Humidity | <65% RH |
Power & Utilities Requirements
| Requirement | Specification |
|---|
| Power Supply | AC 380V, 50/60Hz, 3-phase |
| Peak Power Consumption | 20kW |
| Average Power Consumption | 12kW |
| Compressed Air | 0.5-0.8MPa, 800L/min |
| Water Requirements | DI/RO/Distilled water |
| Water Flow Rate | ≥0.04L/min |
Physical Specifications
| Dimension | Value |
|---|
| Length × Width × Height | 4625mm × 2260mm × 2275mm |
| Equipment Weight | 5,000kg |
| Exhaust Requirements | Φ150mm diameter pipe |
| Feed Box Capacity | 450 cells/box, 8 boxes simultaneously |
Technical Advantages
Superior Cutting Performance
• Zero Mechanical Damage: Precision heating technology operates far below silicon melting point (200-300°C vs 1400°C+), preserving crystal structure and maintaining cell strength
• Crack-Free Smooth Surface: Produces perfectly smooth cutting surfaces without microcracks, enabling advanced module technologies with small/negative gap configurations
• Ultra-High Precision: Interactive platform design achieves ±0.075mm straightness, maximizing window area for large-size modules
• Minimal Contamination: Dust-free cutting process ensures clean production environment and operator safety
Operational Excellence
• Industry-Leading Uptime: ≥98% equipment availability with independent dual-side operation - one side maintenance doesn't affect production
• High Compatibility: Universal framework supports all cell sizes from 166mm to 210mm with simple platform changes
• Proven Technology: First non-destructive cutting machine deployed in China (Tianhe Changzhou, Feb 2020), with over 32 units in mass production achieving<0.05% breakage rates
• Smart Integration: Full MES connectivity, PLC + industrial PC control, BASLER/Dahua vision systems for Industry 4.0 compatibility
• Energy Efficient: 40% lower power consumption compared to traditional thermal cutting methods
Product Applications
Compatible Cell Types
• P-Type Cells: Monocrystalline and bifacial configurations
• N-Type Cells: TOPCon, HJT (heterojunction), and IBC structures
• Advanced Technologies: PERC, MBB, shingled, and half-cut cell designs
• Module Types: Standard, bifacial, flexible, and thin-film compatible
Industry Applications
The GYM-HP8000 is essential for modern solar panel production facilities focusing on:
• High-Efficiency Module Production: Supporting latest cell technologies including TOPCon, HJT, and HPBC
• Large-Format Manufacturing: Optimized for M10, M12, and G12 wafer sizes
• Advanced Module Designs: Enabling small-gap, negative-gap, and ultra-thin configurations
• Automated Production Lines: Seamless integration with Ooitech's complete solar panel production line equipment
This equipment perfectly complements Ooitech's comprehensive solar panel production line solutions, including tabber stringers, laminators, EL testers, and IV testers, providing a complete manufacturing ecosystem from 5MW to 1GW capacity.
Contact for Purchase
Get Your GYM-HP8000 Quote Today
Ooitech - Your trusted partner for complete solar panel production line solutions
Email: [email protected] Phone: +86 18571646990 WhatsApp: +86 15961592660 Website: www.ooitech.com Head Office: Wuhan Yangtze River Center, Wuhan, China
Download Resources:• Complete Product Catalog• Company Profile
Watch Our Production Line in Action: YouTube Channel: www.youtube.com/ooitech MBB Full Automatic Production Line Video
Subscribe to our YouTube channel for the latest solar manufacturing insights and equipment demonstrations!
Service & Warranty:• Lifetime free software upgrades
• 7-day on-site production support per machine
• 1-year comprehensive warranty
• Professional training and ongoing technical support
Contact us today to learn how the GYM-HP8000 can revolutionize your solar cell production efficiency and quality!
