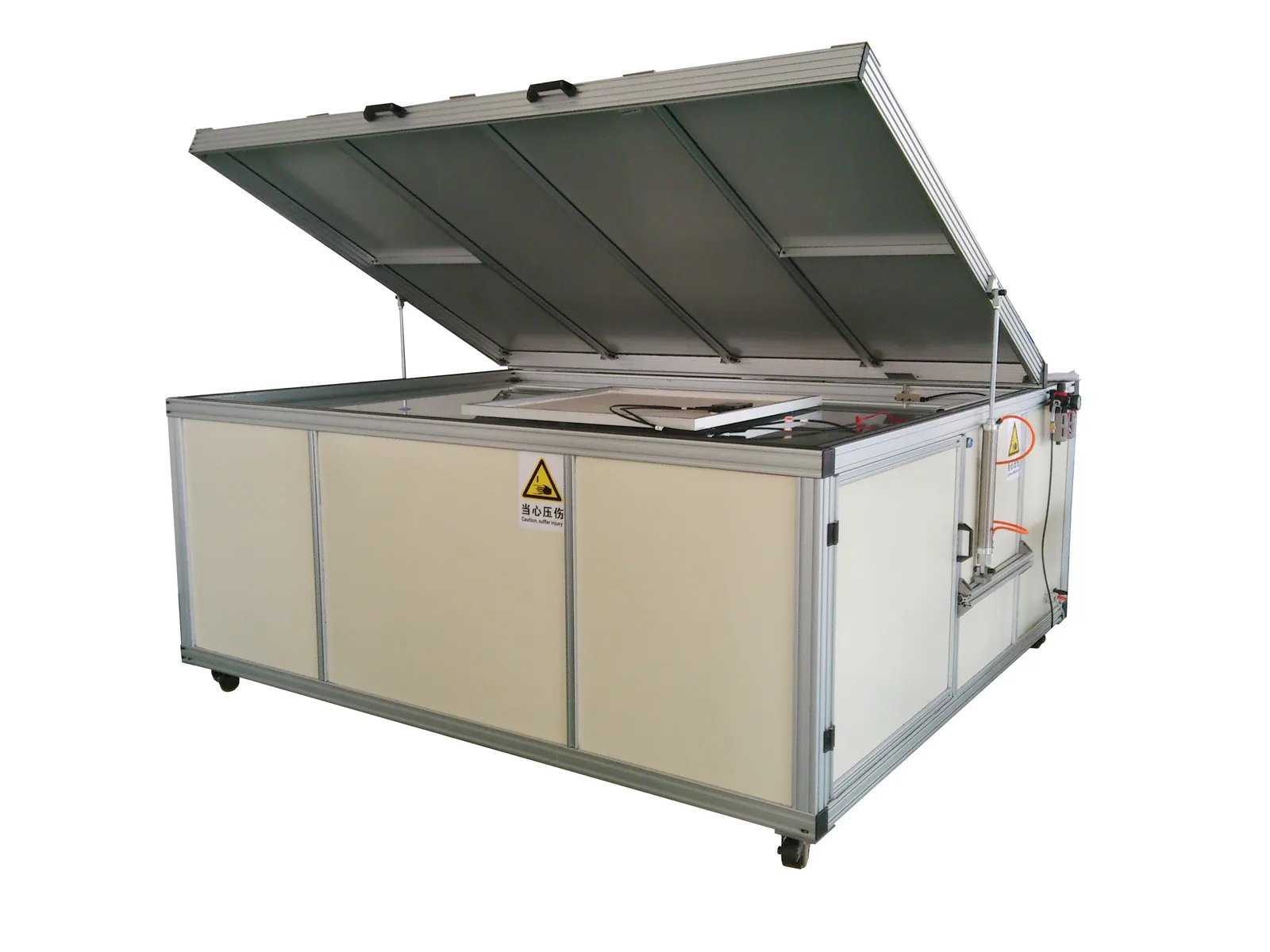

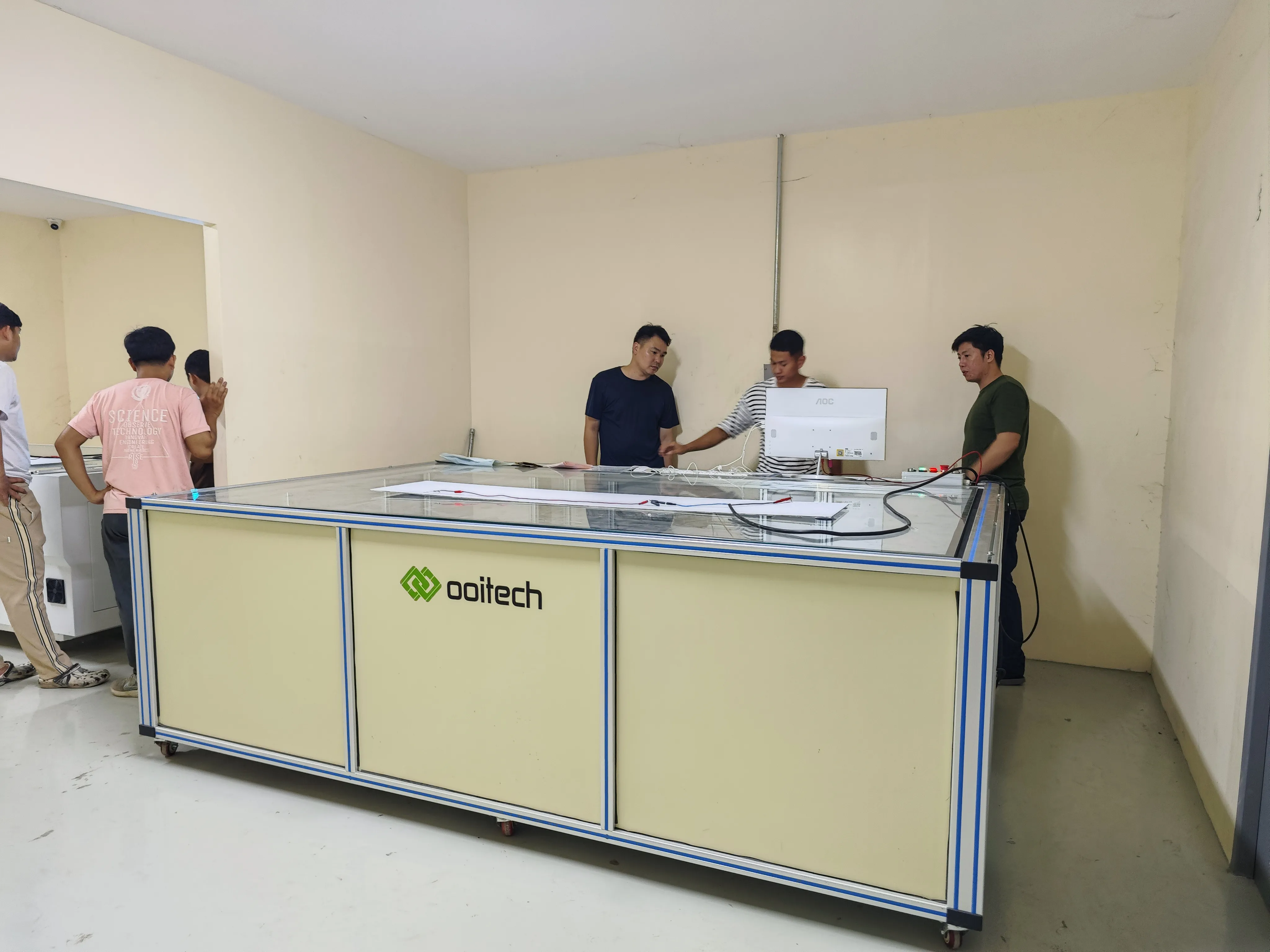

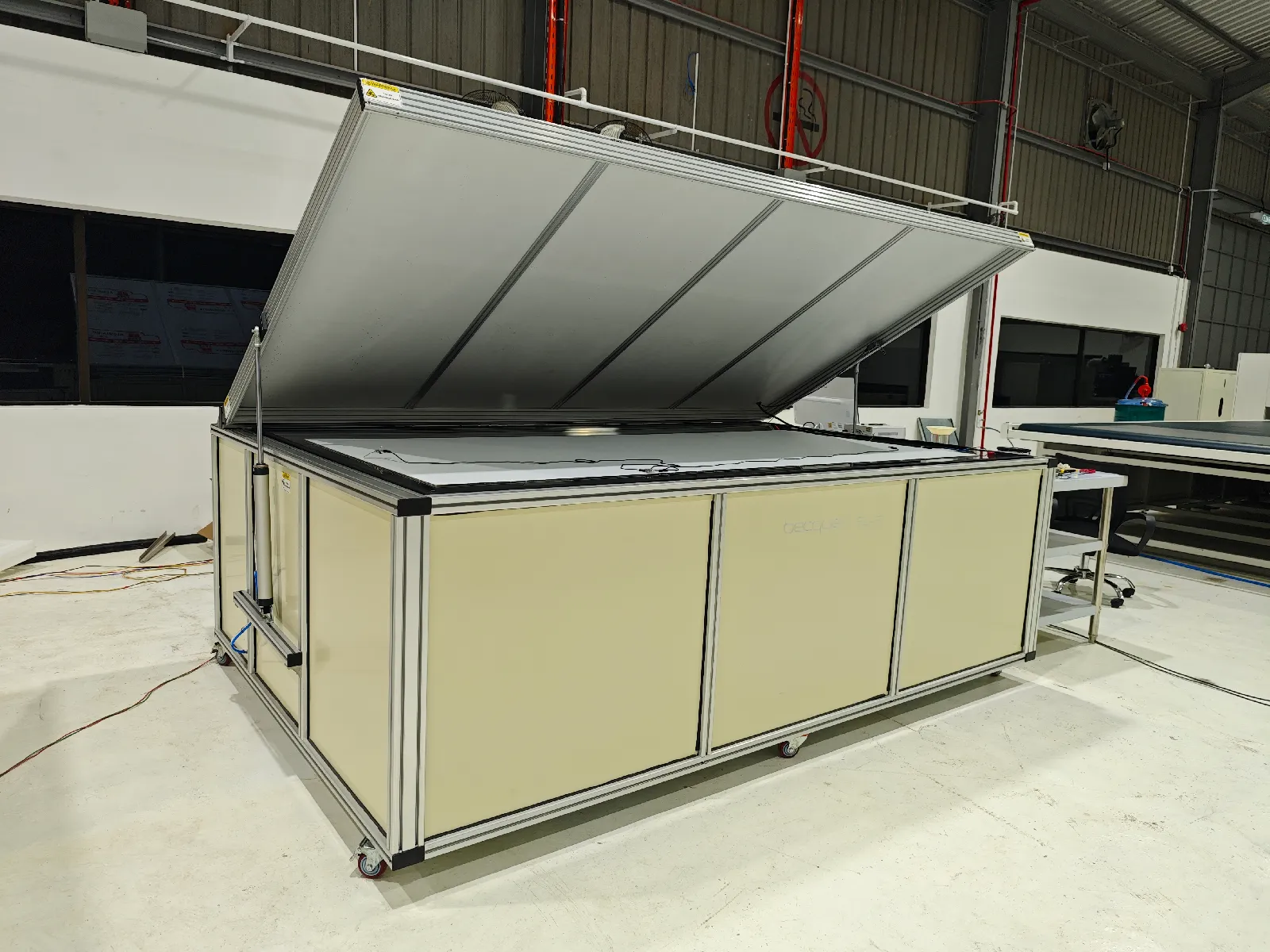

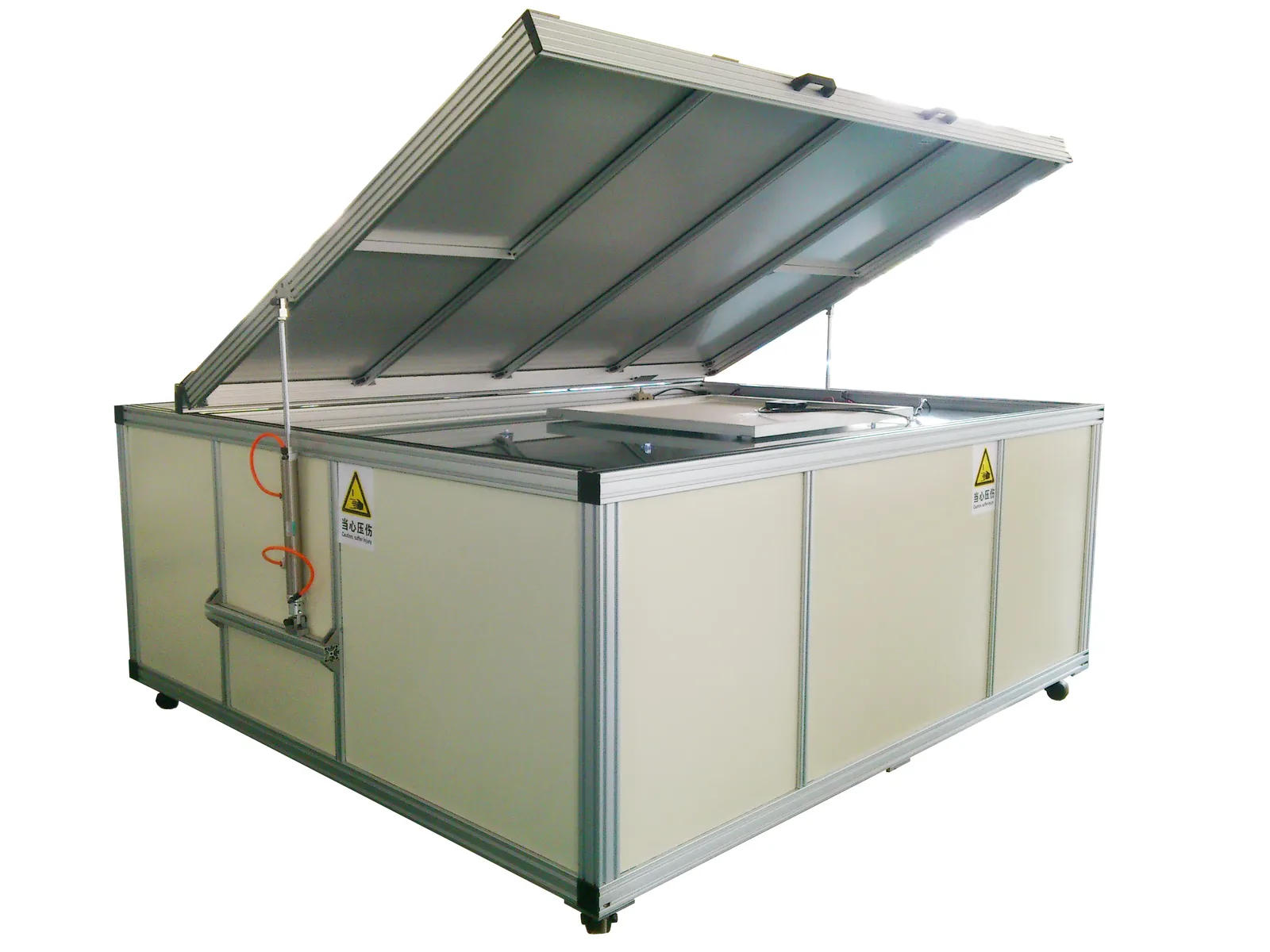

Solar Panel EL Defect Tester OEL-S2400 — Advanced Electroluminescence Testing for Solar Module Quality Assurance
The Ooitech OEL-S2400 Solar Panel EL Defect Tester is a professional-grade offline electroluminescence (EL) testing machine engineered for comprehensive quality inspection of solar modules. By applying a forward bias current to solar panels and capturing the resulting infrared electroluminescence emission with a high-resolution camera, this EL tester reveals hidden defects that are completely invisible to the naked eye. It is an indispensable quality control tool in any solar panel production line, ensuring that only defect-free modules reach the end customer.
The OEL-S2400 is capable of detecting a wide range of critical defects including microcracks, cell breakage, black spots, mixed wafers, process defects, cold solder joints, and virtual welding issues. With its high-resolution 4928 x 3264 imaging sensor, super-white tempered glass sample stage, and intelligent defect classification software, this machine delivers fast, accurate, and repeatable inspection results. It supports solar modules up to 2600mm x 1500mm in size, making it compatible with all mainstream module formats including G1, M6, M10, M12, MBB, PERC, TOPCon, HJT, and shingled modules.
Whether you are building a new solar panel production line or upgrading your existing quality control process, the Ooitech OEL-S2400 EL Defect Tester provides the reliability and precision you need to maintain the highest manufacturing standards.
Watch our full MBB solar panel production line in action on our YouTube channel: Ooitech YouTube Channel. Subscribe, like, and stay updated with the latest solar panel manufacturing technology and equipment demonstrations. You can also watch our full automatic MBB production line video here: MBB Full Automatic Solar Panel Production Line.
Technical Specifications
The following table provides the complete technical parameters of the Ooitech OEL-S2400 Solar Panel EL Defect Tester:
| Parameter | Specification |
|---|
| Model | OEL-S2400 |
| Capture Mode | Single Camera |
| Run Mode | Offline |
| Monitor Point | After Laminating |
| Sample Stage | Super-white Tempered Glass |
| Maximum Sample Size | 2600mm x 1500mm |
| Operation Height | 1300mm |
| Image Resolution | 4928 x 3264 pixels |
| Exposure Time | 1 ~ 60 seconds (adjustable) |
| Output Current / Voltage | 10A / 60V |
| Detection Capability | Crack, Black Spot, Mixed Wafers, Process Defect, Cold Solder Joint, Virtual Welding, Cell Contamination |
| Software Features | Barcode scanning interface with automatic file naming; Automatic defect classification with image folder creation and file saving |
| Standard Configuration | EL testing host, computer, software |
Technical Advantages
Why Choose the Ooitech OEL-S2400 EL Defect Tester
Reveals Invisible Defects: Utilizes electroluminescence imaging technology to expose hidden defects such as microcracks, cell breakage, finger interruptions, dark areas, and cold solder joints that cannot be seen with the naked eye or standard visual inspection.
High-Resolution Imaging: Equipped with a 4928 x 3264 pixel high-resolution camera, the OEL-S2400 delivers the highest available resolution for detailed defect analysis, ensuring even the smallest flaws are captured and identified.
Intelligent Defect Classification: The integrated software automatically classifies detected defects into categories including welding spots, cracks, current mismatch, cell process defects, virtual welding, and cell contamination. Images are automatically organized into categorized folders for efficient record-keeping and traceability.
Barcode Integration: The built-in barcode scanning interface allows operators to scan module barcodes and automatically name image files accordingly, streamlining production data management and enabling full traceability across the manufacturing process.
Improved Production Yield: By identifying defective modules early in the production process — particularly after lamination — the EL tester helps manufacturers avoid shipping defective products, significantly reducing warranty claims and improving overall line yield.
Enhanced Product Quality and Reliability: Systematic EL inspection ensures that every solar module leaving the production line meets stringent quality standards, building customer confidence and strengthening brand reputation.
Flexible Testing Capability: The system is designed to test both framed and unframed solar modules, and can be deployed before or after lamination depending on your production line configuration. It supports all mainstream module sizes up to 2600mm x 1500mm.
Adjustable Exposure Settings: With an exposure time range of 1 to 60 seconds, operators can fine-tune imaging parameters to achieve optimal results for different cell technologies and module configurations.
Super-white Tempered Glass Stage: The sample stage is constructed from super-white tempered glass, providing a clean, uniform, and durable testing surface that does not interfere with EL image quality.
User-Friendly Operation: The intuitive software interface and ergonomic 1300mm operation height make the OEL-S2400 easy to operate, reducing training time and minimizing operator fatigue during extended production runs.
Product Applications
Defect Types Detected by the OEL-S2400
The Ooitech OEL-S2400 Solar Panel EL Defect Tester is designed to detect and classify the following defect types commonly found in solar module manufacturing:

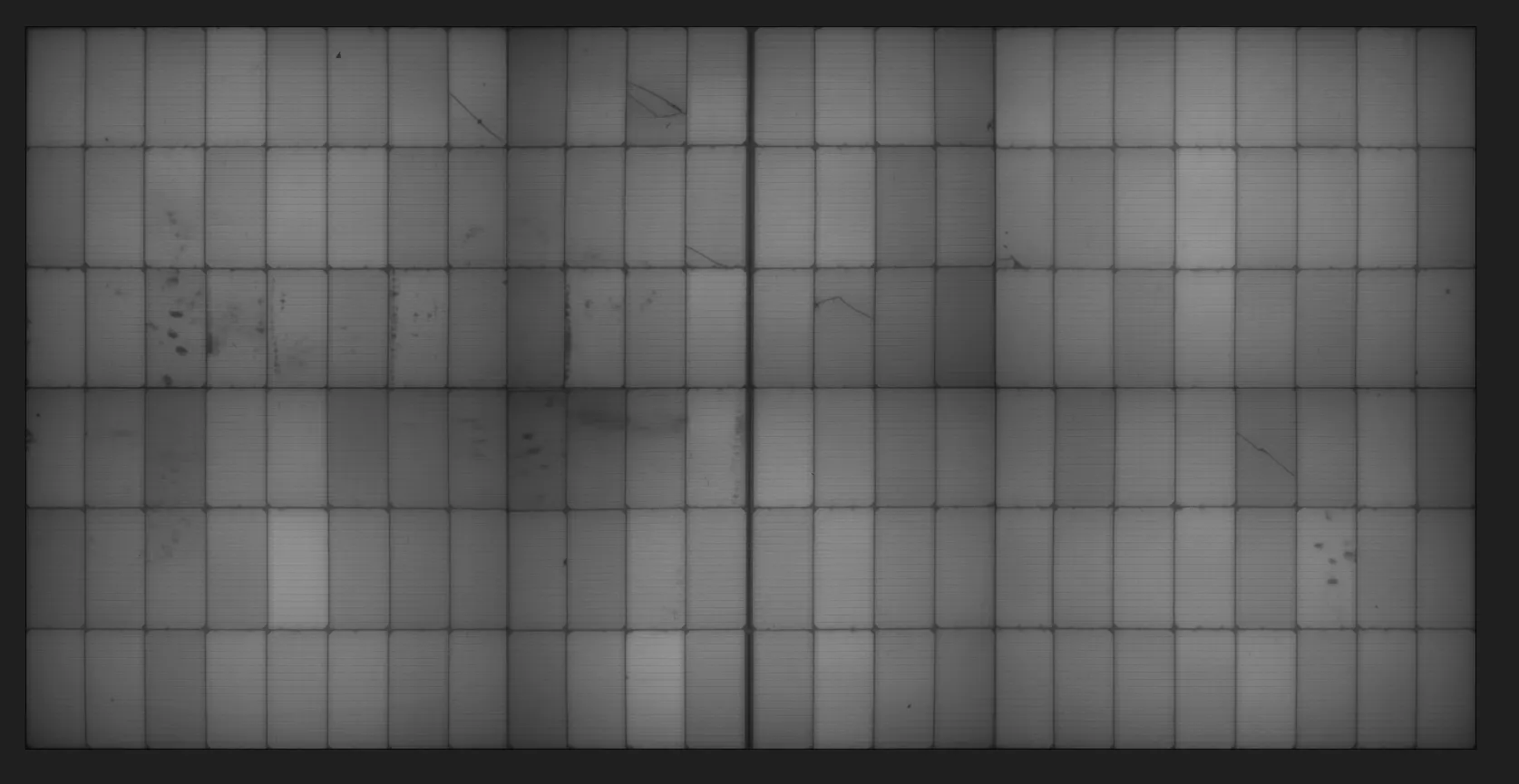

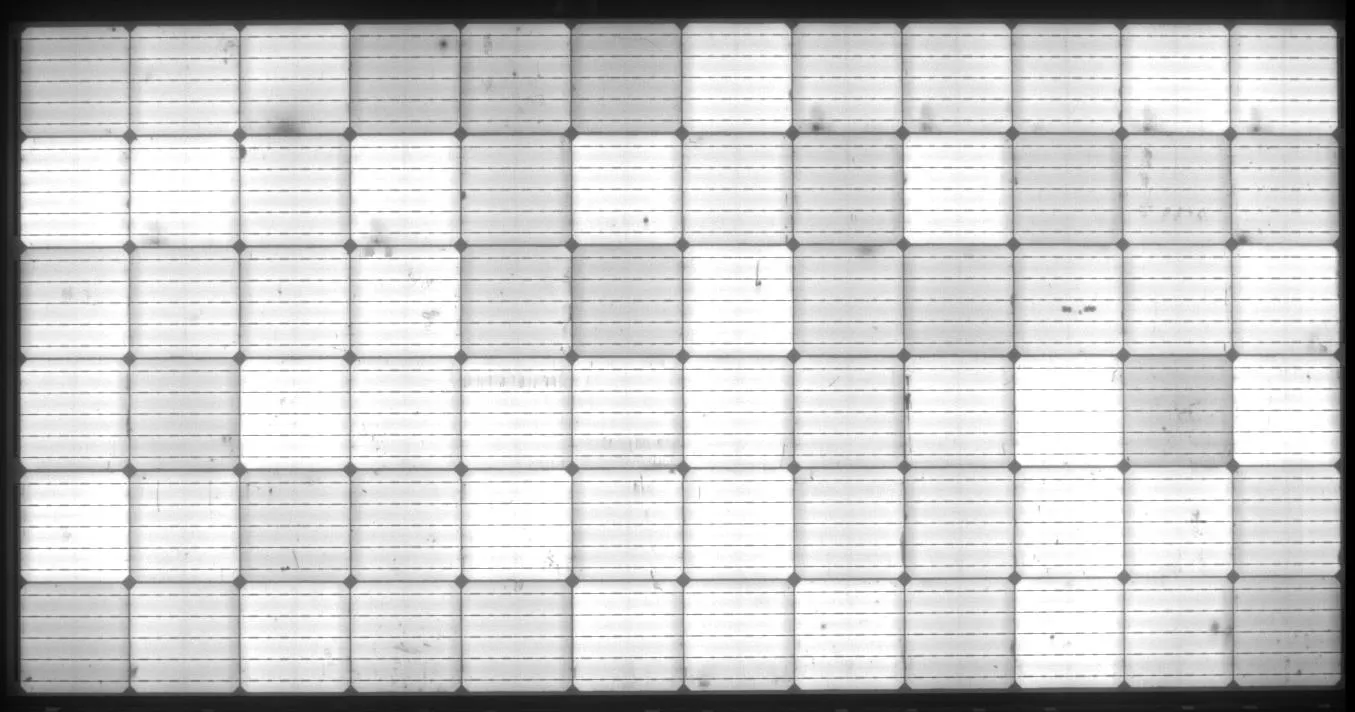

Microcracks and Cell Breakage: Detects hairline cracks and fractures in solar cells that can lead to power degradation and hotspot formation over the module's lifetime.
Black Spots and Dark Areas: Identifies inactive cell regions caused by material defects, contamination, or process issues that reduce cell efficiency.
Mixed Wafers: Reveals inconsistencies in cell batches where wafers with different electrical characteristics have been inadvertently mixed, leading to current mismatch losses.
Process Defects: Catches manufacturing anomalies such as incomplete metallization, broken fingers, and uneven anti-reflective coating application.
Cold Solder Joints and Virtual Welding: Detects poor solder connections between cell interconnections and bus bars that can cause electrical resistance, power loss, and long-term reliability failures.
Cell Contamination: Identifies foreign particles or residue on cell surfaces that affect performance and appearance.
Application Scenarios in Solar Panel Production Lines

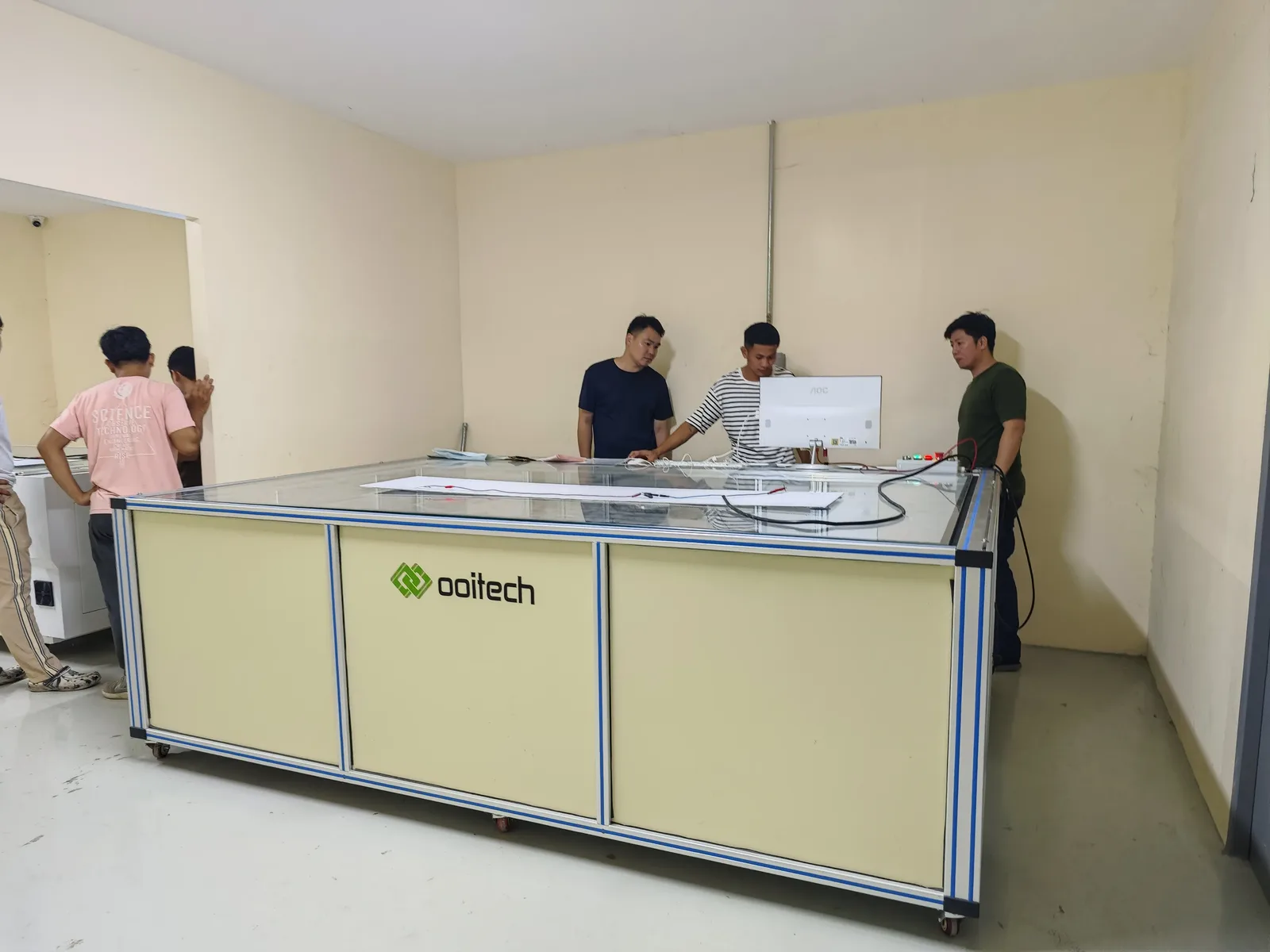

Post-Lamination Quality Inspection: The OEL-S2400 is optimally positioned after the lamination stage in a solar panel production line to perform final EL inspection before framing and packaging.
Incoming Cell Quality Verification: Can also be used to verify the quality of incoming solar cells before they enter the stringing and layup process.
R&D and Failure Analysis: Ideal for research and development laboratories performing failure analysis, process optimization, and new cell technology evaluation.
Compatible Module Technologies: Supports EL testing for all mainstream solar cell and module technologies including PERC, TOPCon, HJT, IBC, ABC, HPBC, shingled, MBB (multi-busbar), half-cut, and flexible modules in G1, M6, M10, and M12 wafer formats.
Production Line Integration: Suitable for integration into 5MW to 1GW solar panel production lines. Ooitech provides complete turnkey production line solutions including cell laser cutting machines, tabber stringers, layup machines, bussing machines, EL testers, laminators, framing machines, glue dispensing machines, IV testers, sun simulators, glass loading machines, and EVA/TPT cutting machines.
Warranty and After-Sales Service
Ooitech provides comprehensive warranty coverage and professional after-sales support for the OEL-S2400 Solar Panel EL Defect Tester:
Warranty Period: One year warranty after successful installation, or 16 months from Bill of Lading (BL) date, whichever comes first. Machines must be operated by trained personnel who have received Ooitech's official installation and training program.
Free Maintenance and Spare Parts: During the warranty period, Ooitech provides timely maintenance services and necessary spare parts free of charge (excluding consumable parts). Courier costs for spare parts shipping are the responsibility of the buyer.
On-Site Engineer Support: If the buyer's engineers cannot resolve an issue remotely during the warranty period, Ooitech will dispatch engineers to the buyer's facility. The buyer is responsible for round-trip airfare, local transportation, hotel accommodation, and meals.
Warranty Exclusions: The warranty does not cover damage or malfunctions resulting from misuse, abuse, unauthorized disassembly or modification by parties other than Ooitech's authorized technicians, or use inconsistent with the operation manual.
Post-Warranty Support: After the warranty period, Ooitech continues to provide free online technical support and guidance. Spare parts are available at favorable prices. If on-site repair is required, the buyer covers airfare, visa fees, food, hotel, travel expenses, and labor costs according to Ooitech's standard rates.
Consumable Parts: Consumable components are available for purchase at any time upon request.
